| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan ETERN Optoelectronics |
| Certification: | RoHS |
| Model Number: | FIBER-OPTIC SWITCH ULTRA-MINI 1X1/1X2/2X2BYPASS |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Packaging Details: | blister box |
| Payment Terms: | T/T |
| Supply Ability: | 100k per month |
| Feature: | Wide Operating Wavelength Range | Quality: | Low Insertion Loss And Low-crosstalk |
|---|---|---|---|
| Application: | Module & System Integration, Instrumentation | Operating Wavelength: | 1290-1330nm |
| Certification: | RoHS Complaint | Type: | 2X2 Bypass |
| Highlight: | RoHS optical fiber ethernet switch,Multimode optical fiber ethernet switch,Ultra-Mini fiber core switch |
||

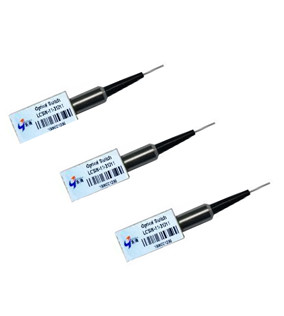

FIBER-OPTIC SWITCH ULTRA-MINI 1X1/1X2/2X2BYPASS
Features:
1. Low Insertion Loss & Cross Talk
2. Wide Operating Wavelength Range
3. Bi-directional
Applications:
1. Network Protection & Restoration
2. Channel Blocking
3. Module & System Integration
4. Instrumentation
5. Configurable OADM
Performance Specifications:
| Parameter | Units | Single-Mode | Multi-Mode | ||
|
Operating Wavelength 1x1, 1x2 Insertion Loss1, 2 2x2B |
nm
dB |
1290~1330 and/or 1525~1610 |
≤ 0.8 ≤ 0.9 |
850 or 850&1310 | |
| Return Loss1, 2 Polarization Dependent Loss Wavelength Dependent Loss | dB dB dB |
≥ 45 ≤ 0.1 ≤ 0.2 |
≥ 30
≤ 0.3 |
||
|
Crosstalk Repeatability |
dB dB |
≥ 55 |
≤ ±0.02 |
≥ 30 | |
| Switch Time | ms | ≤ 4 | |||
| Durability | times | ≥ 107 | |||
| Switch Voltage | VDC | 2.7~3.3 or 4.5~5.5 | |||
|
Latching 30~36@3V Driving or 20~24@5V Driving Switch Current mA Non-latching 42~51@3V Driving or 28~34@5V Driving |
|||||
|
Power Handling Operating Temperature Operation Humidity Storage Temperature Storage Humidity Fiber Type |
mW °C %RH °C %RH |
Corning SMF-28e fiber |
≤ 500 -5~+65 5~95 -40~+85 5~95 MMF 50/125 or 62.5/125 |
||
| Pigtail Type Package Dimension |
mm |
250mm bare fiber or 900mm loose tube 27.0L x 10.4W x 7.2H | |||
Note: 1. Measured without connectors; IL will be 0.3dB worse and RL will be 5dB lower with connectors
2. Measured with LED or VSCEL optical source for Multi-mode type
Mechanical Dimensions(Unit: mm)
Electrical PINs Definition
|
Type |
Light Path |
Drive PIN |
Monitor |
||||
|
1x1 |
1x2 |
2x2B |
1 |
8 |
3-4,5-6 |
2-3,6-7 |
|
|
Latching |
1－2 |
1－2 |
1－2/3－4 |
V+ |
GND |
CLOSE |
OPEN |
|
- |
1－3 |
1－4 |
GND |
V+ |
OPEN |
CLOSE |
|
|
Non-latching |
1－2 |
1－2 |
1－2/3－4 |
V+ |
GND |
CLOSE |
OPEN |
|
- |
1－3 |
1－4 |
GND |
GND |
OPEN |
CLOSE |
|
Function Diagram
Ordering Information:
|
LCSW |
- |
□□□ |
- |
□ |
|
□ |
□ |
□ |
□ |
|
Optical Switch Switch Type |
Wavelength |
|
Switch Mode |
Fiber Type |
Fiber Length |
Connector |
|||
|
M11=Mini 1x1 |
1=1310nm |
|
1=Latching |
1=250um SM |
1=0.5m |
1=None |
|||
|
M12=Mini 1x2 |
2=1550nm |
|
2=Non-latching |
2=900um SM |
2=1m |
2=FC/UPC |
|||
|
M22B=Mini 2x2 Bypass |
3=1310&1550nm |
|
|
3=250um 62.5/125 |
3=2m |
3=FC/APC |
|||
|
|
4=850nm |
|
|
4=900um 62.5/125 |
X=Specify |
4=LC/UPC |
|||
|
|
5=850&1310nm |
|
|
5=250um 50/125 |
|
5=LC/APC |
|||
|
|
X=Special |
|
|
6=900um 50/125 |
|
6=SC/UPC |
|||
|
|
|
|
|
X=Special |
|
7=SC/APC |
|||
|
|
|
|
|
|
|
X=Specify |
|||
