Description

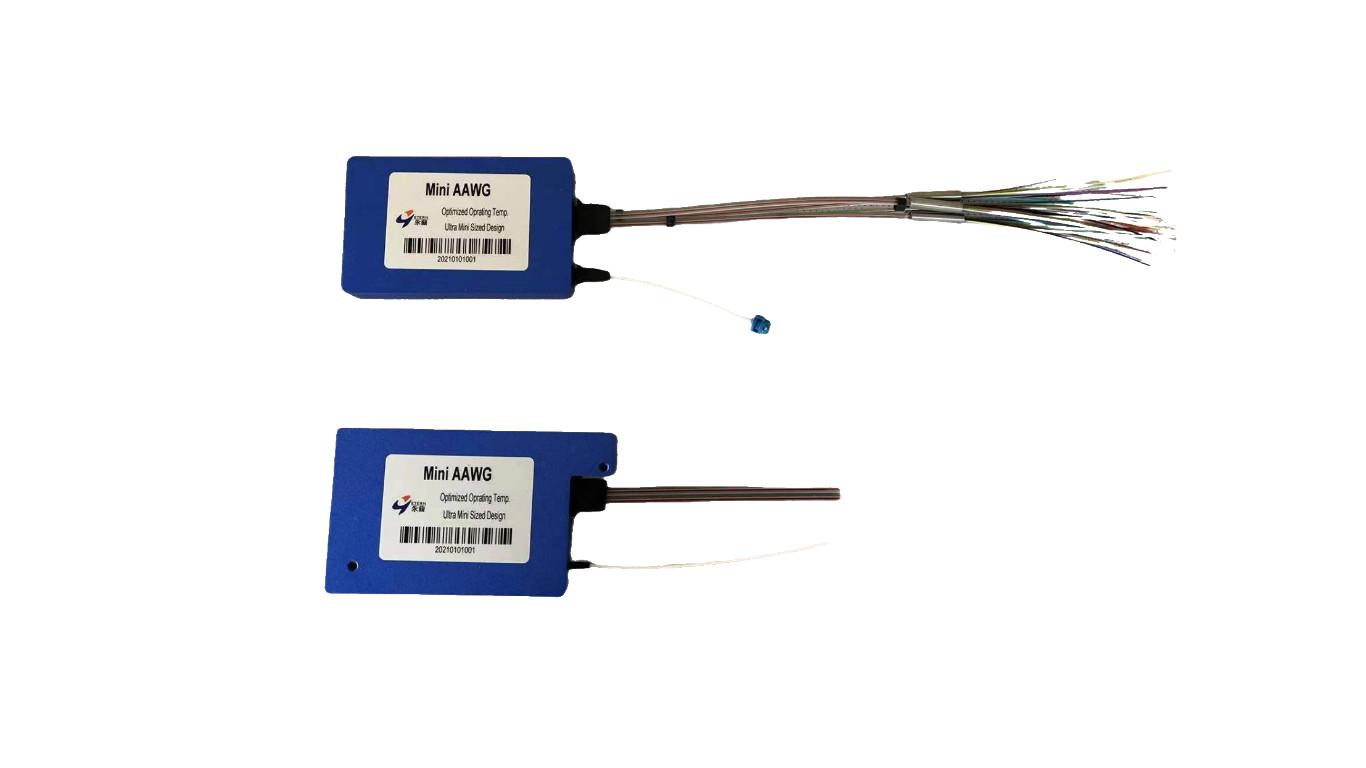

ETERN Arrayed Waveguide Grating (AWG) is a cost-effective, high-performance DWDM Mux/Demux device operating on 100GHz channel spacing in the C and L band ITU grid, without any electrical power needed.
Etern AAWG offers low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. The products are Telcordia GR-1221-CORE and GR-1209-CORE qualified, and RoHS complaint.
| Customer PN | Manufacturing PN | Product Code | Notes |
| AAWG-1F36-C20-0302024-MDM | AAWG, 100GHz Spacing, Flat-top, 36ch, C20-C55, LC/UPC |
| Parameters | Unit | Value | |
| Channel Number | 36 | ||
| Channel Spacing | GHz | 100 | |
| Center Wavelength | nm | 1538.186 ~ 1561.419 | |
| Channel Frequency | THz | 192.0 ~195.5 | |
| Reference Passband | nm | ±0.1 | |
| Insertion Loss | dB | ≤5.5 | |
| Insertion Loss Uniformity | dB | ≤1.5 | |
| Passband Ripple | dB | ≤0.5 | |
| Bandwidth | @1dB | nm | ≥ 0.4 |
| @3dB | ≥ 0.6 | ||
| Isolation | Adjacent Channels | dB | ≥25 |
| Non-adjacent Channels | ≥30 | ||
| Total crosstalk | dB | ≥21 | |
| PDL | dB | ≤0.5 | |
| PMD | ps | ≤0.5 | |
| Return Loss | dB | ≥40 | |
| Chromatic Dispersion | ps/nm | ±20 | |
| Operating Temperature | ℃ | -5 to +65 | |
| Storage Temperature | ℃ | -40 to +85 | |
| Parameter | Specifications | Unit | |
| Fiber Type | SMF-28e With 600um Loose tube fiber(TBD) | ||
| Fiber Length | Common Fiber | 300(TBD) | mm |
| Ribbon Fiber | 200(TBD) | mm | |
| Fan-out | 200(TBD) | mm | |
| Optical Adaptors (All port) | LC/UPC | ||
