| Place of Origin: | China |
|---|---|
| Brand Name: | ETERN |
| Certification: | RoHS |
| Minimum Order Quantity: | 10PCS |
| Features: | Tensile Resistance | Product Name: | Leaky Coax Cable |
|---|---|---|---|
| Applications: | Railway Radio Train Communication | Diameter: | 13.10mm 34.00mm |
| High Light: | Railway Radio Train Communication Leaky Cable,13.10mm Leaky Cable,34.00mm leaky coax cable |
||
Railway Radio Train Communication Leaky Cable 13.10mm 34.00mm

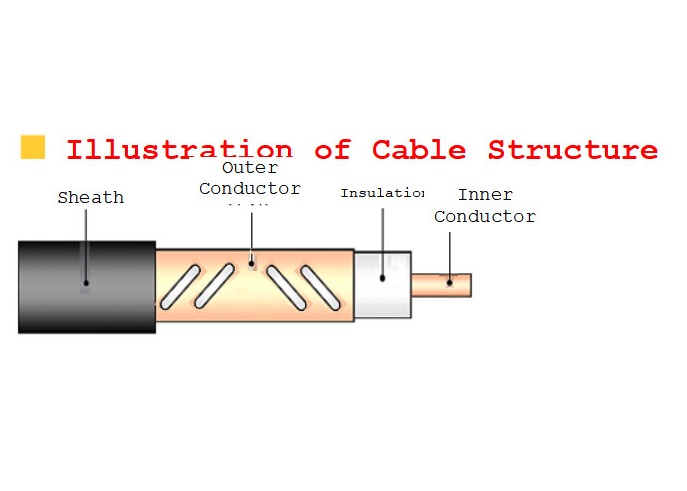

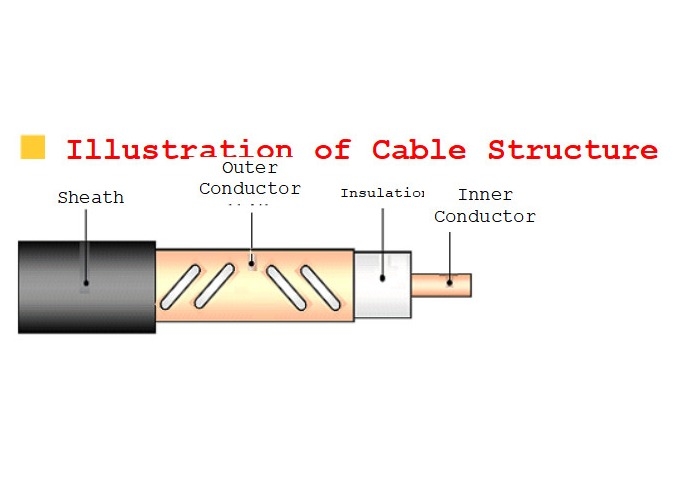

| Product Model | Inner Conductor | Insulation |
Outer Conductor
|
Outer Sheath
|
||||
| Material | Diameter | Material | Diameter | Material | Diameter | |||
| WDZ-SLYWY-50-32 | Ⅰ48 |
Smooth copper tube
|
13.10mm | Physically-foamed polyethylene insulation | Punched hole copper strip landing edge longitudinal wrapped | 34.00mm | Low smoke halogen-free flame retardant polyolefin | 38.00mm |
| Ⅰ47 | ||||||||
| Ⅰ46 | ||||||||
| Product Model | Minimum Bending Radius for a Single Time | Minimum Bending Radius for Multiple Times (15 Times) | Maximum Tensile Resistance | Installation Temperature | Working Temperature | |
| WDZ-SLYWY-50-32 | Ⅰ48 | 400mm | 500mm | 2000N | -55℃～+85℃ | -40℃～+70℃ |
| Ⅰ47 | ||||||
| Ⅰ46 | ||||||
| Product Model | WDZ-SLYWY-50-32 | |||
| Ⅰ48 | Ⅰ47 | Ⅰ46 | ||
| Average Characteristic Impedance(Ω) | 50±2 | |||
| Dielectric strength(V,DC,1min) | 10000 | |||
| Minimum Insulation Resistance(MΩ·km) | 10000 | |||
| Sheath Spark Testing(V,AC,Effective Value) | 10000 | |||
|
Longitudinal Attenuation dB/100m ±5%,20℃ |
455~461MHz | 2.2 | 2.4 | 3.3 |
| 465~471MHz | ||||
|
Coupling Loss dB±5dB 95%,2m |
455~461MHz | 83 | 73 | 63 |
| 465~471MHz | ||||
| Maximum VSWR | 455~461MHz | ≤1.30 | ||
| 465~471MHz | ≤1.30 | |||
