| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan Etern Optoelectronics |
| Certification: | Telcordia GR-1221-CORE and GR-1209-CORE qualified |
| Model Number: | 75GHz FLAT-TOP AAWG 40ch |
| Minimum Order Quantity: | 2 |
| Price: | Negotiable |
| Packaging Details: | About 0.2kg/pc， package box size is about 79x45x15mm |
| Delivery Time: | 4 Weeks |
| Payment Terms: | L/C |
| Supply Ability: | 150k channels per month |
| Channels: | 40CH, 40 Channels | Channel Spacing: | 75GHz |
|---|---|---|---|
| Insertion Loss(Typical）: | 5.0 DB | 1dB Bandwidth: | ≥0.4nm |
| 3dB Bandwidth: | ≥0.6nm | Operation Perfomance: | Low Insertion Loss, High Isolation |
| High Light: | GR-1221-CORE AWG Multiplexer,40 Channels AWG Multiplexer,Low Insertion Loss wdm dwdm |
||

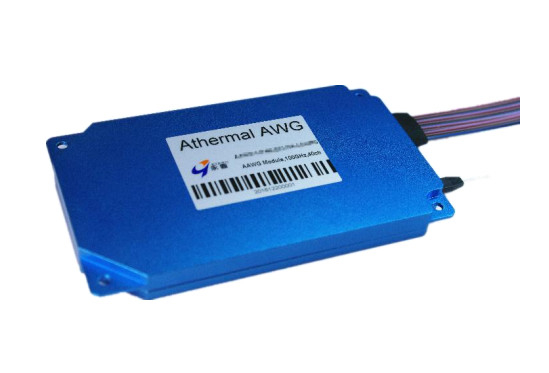

ETERN Arrayed Waveguide Grating (AWG) is a cost-effective, high-performance DWDM Mux/Demux device operating on 100GHz channel spacing in the C and L band ITU grid, without any electrical power needed. Etern AAWG offers low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. The products are Telcordia GR-1221-CORE and GR-1209-CORE qualified, and RoHS complaint.
| Features | Applications |
| Athermal Design Over Operating Temperature Range | WDM Transmission |
| Compact Size | Metro and Long-haul Network |
| High Stability and Reliability | |
| Low Insertion Loss, High Isolation |
Performance Specification
| Parameter | Units | Value | |
| Channels | 40/44/48 | ||
| Channel Spacing | GHz | 75 | |
| Reference Passband | GHz | ±12.5 | |
| Wavelength Accuracy | pm | ±50 | |
| Insertion Loss1 | Typ. | dB | 5.0 |
| Max. | 5.5 | ||
| Insertion Loss Uniformity | dB | ≤1.5 | |
| Polarization Dependent Loss (PDL) | dB | ≤0.5 | |
| 1dB Bandwidth | nm | ≥0.4 | |
| 3dB Bandwidth | nm | ≥0.6 | |
| Adjacent Channel Isolation | dB | ≥25 | |
| Non-Adjacent Channel Isolation | dB | ≥30 | |
| Total Crosstalk | dB | ≥22 | |
| Return Loss | dB | ≥40 | |
| Chromatic Dispersion(CD) | ps/nm | -20 ~ +20 | |
| Polarization Mode Dispersion(PMD) | ps | ≤0.5 | |
| Operating Temperature | ℃ | -5 to +65 | |
| Storage Temperature | ℃ | -40 to +85 | |
Note: 1. Tested with connectors.
