| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan ETERN Optoelectronics |
| Certification: | RoHS |
| Model Number: | AAWG-1F48-C14-0505054-MDM |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Packaging Details: | carton |
| Payment Terms: | T/T |
| Supply Ability: | 50k per month |
| High Light: | 48CH AWG MUX DEMUX,100G AWG MUX DEMUX,SPacing AWG MUX DEMUX |
||
|---|---|---|---|

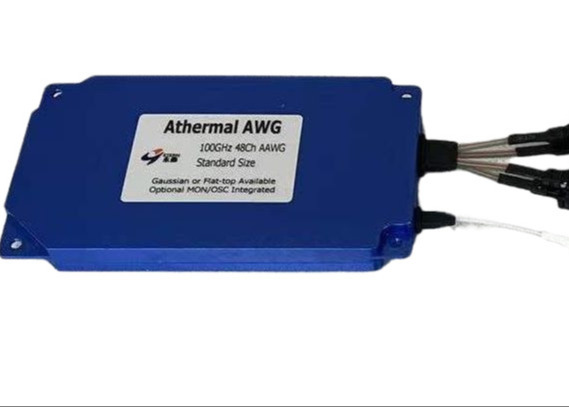

100GHZ SPACING FLAT-TOP AAWG C-T MULTIPLEXER / DEMULTIPLEX
ETERN Arrayed Waveguide Grating (AWG) is a cost-effective, high-performance DWDM Mux/Demux device operating on 100GHz channel spacing in the C and L band ITU grid, without any electrical power needed. Etern AAWG offers low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. The products are Telcordia GR-1221-CORE and GR-1209-CORE qualified, and RoHS complaint
Features
Athermal Design Over Operating Temperature Range
Compact Size
High Stability and Reliability
Low Insertion Loss, High Isolation
Applications
WDM Transmission
Metro and Long-haul
