| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan ETERN Optoelectronics |
| Certification: | RoHS |
| Model Number: | AAWG-1F40-C21-0505054-MDR |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Packaging Details: | carton |
| Payment Terms: | T/T |
| Supply Ability: | 1k per month |

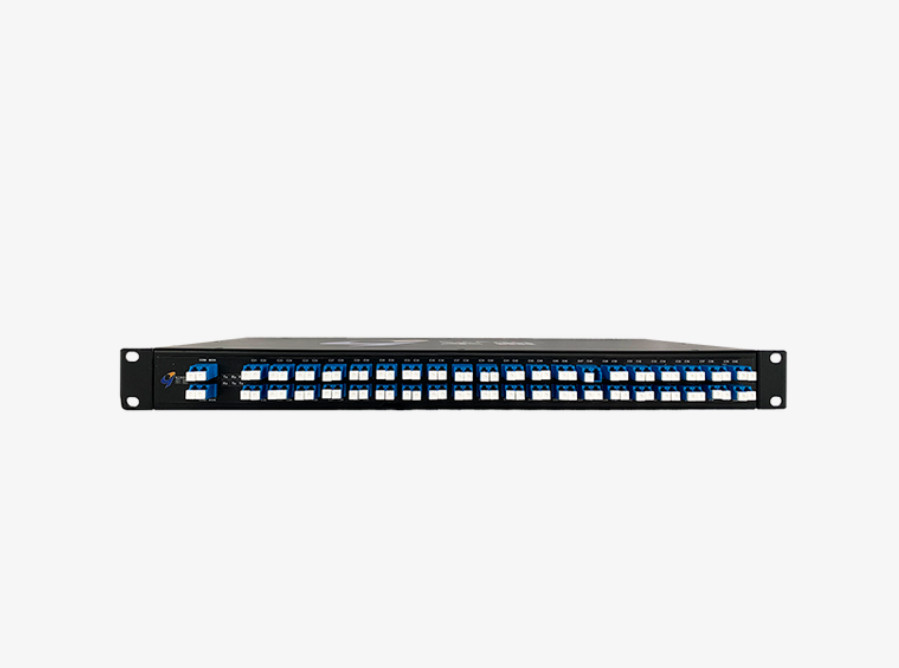

| Wavelength: | C21-C60 | Product Name: | 40CH DWDM MUX&DEMUX |
|---|---|---|---|
| Channel Space: | 100GHz | Fiber Type: | Dual Fiber |
| Fiber Length: | Customized | Warranty: | 1-3 Years |
| High Light: | 40ch WDM Module,40ch MUX DEMUX DWDM,MUX DEMUX DWDM 19 Inch |
||
| Center Wavelength | C21~C60 | |
| Channel Spacing | 100GHz | |
| Channel Passband | ±0.11nm | |
| 1310 Port Passband | 1260~1360 | |
| Insertion Loss, Per Channel | ≤5.0dB | |
| Insertion Loss, 1310 Port | ≤1.0dB | |
| Insertion Loss @ 1% Mon | ≤24dB | |
| Adjacent Channel Isolation | ≥30dB | |
| Non-adjacent Channel Isolation | ≥40dB | |
| Passband Ripple | ≤0.5dB | |
| Directivity | ≥50dB | |
| Return Loss | ≥45dB | |
| PDL | ≤0.5dB | |
| PMD | ≤0.5ps | |
| Power Handling | ≤500mW | |
| Operating Temperature | -10 to 70 | |
| Storage Temperature | -40 to 85 | |
| Dimensions | 44mmx481.8mmx261.2mm |
