| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan ETERN Optoelectronics |
| Certification: | RoHS |
| Model Number: | DWDM-1-16-C21-1-055-MDR |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Packaging Details: | carton |
| Payment Terms: | T/T |
| Supply Ability: | 5K per month |
| Wavelength: | C21-C36 | Product Name: | DWDM MUX&DEMUX |
|---|---|---|---|
| Connector: | SC FC LC APC UPC PC | Fiber Type: | G657A1/SMF-28e,Dual Fiber |
| Fiber Length: | Customized | Warranty: | 1~3 Years |
| Application: | FTTH FTTB FTTX Network,CWDM System,DWDM Network Add/Drop System CATV Fiberoptic System,WDM System PON Networks C | Channels: | 16 Channel |
| High Light: | 16CH DWDM MUX DEMUX,DWDM MUX DEMUX 1U,19 Inch DWDM MUX DEMUX |
||

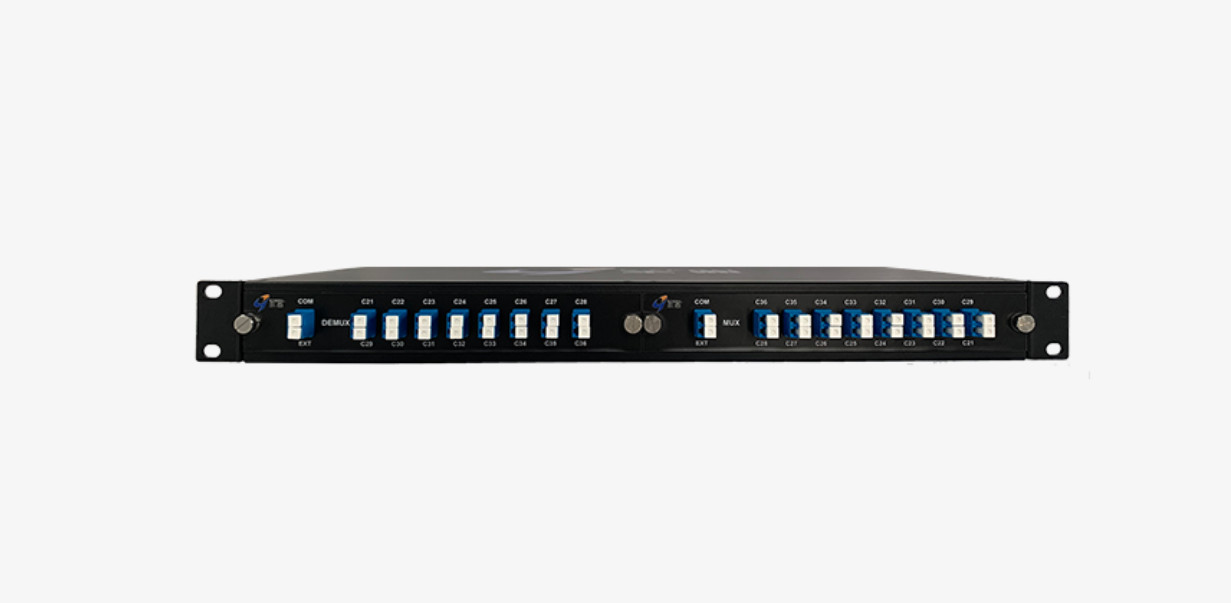

16CH DWDM MUX&DEMUX TFF 1U 19-inch Rack Mount
| Channel Spacing | 100GHz | |
| Channel Passband | ±0.11nm | |
| 1310 Port Passband | 1260~1360 | |
| Insertion Loss, Per Channel | ≤4dB | |
| Insertion Loss, 1310 Port | ≤1.0dB | |
| Insertion Loss @ 1% Mon | ≤24dB | |
| Adjacent Channel Isolation | ≥30dB | |
| Non-adjacent Channel Isolation | ≥40dB | |
| Passband Ripple | ≤0.5dB | |
| Directivity | ≥50dB | |
| Return Loss | ≥45dB | |
| PDL | ≤0.5dB | |
| PMD | ≤0.1ps | |
| Power Handling | ≤500mW | |
| Operating Temperature | -10 to 70 | |
| Storage Temperature | -40 to 85 | |
| Dimensions | 44mmx481.8mmx261.2mm |
