| Place of Origin: | China |
|---|---|
| Brand Name: | ETERN |
| Certification: | RoHS |
| Model Number: | 6CH CCWDM |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Packaging Details: | Single item |
| Payment Terms: | T/T |
| Supply Ability: | 10k per month |
| Wavelength: | From 1260nm To 1620nm | Product Name: | Cwdm Mux Demux Module |
|---|---|---|---|
| Connector: | LC | Fiber Type: | SMF-28e Or Customized |
| Fiber Length: | Customized | Warranty: | 1year |
| Application: | FTTH FTTB FTTX Network,CWDM System,DWDM Network Add/Drop System CATV Fiberoptic System,WDM System PON Networks C | Operating Temperature: | -40~ +85,-10℃~+70℃ |
| High Light: | 6CH WDM Module,6CH CCWDM Mux Demux,FTTH FTTB CCWDM Mux Demux |
||

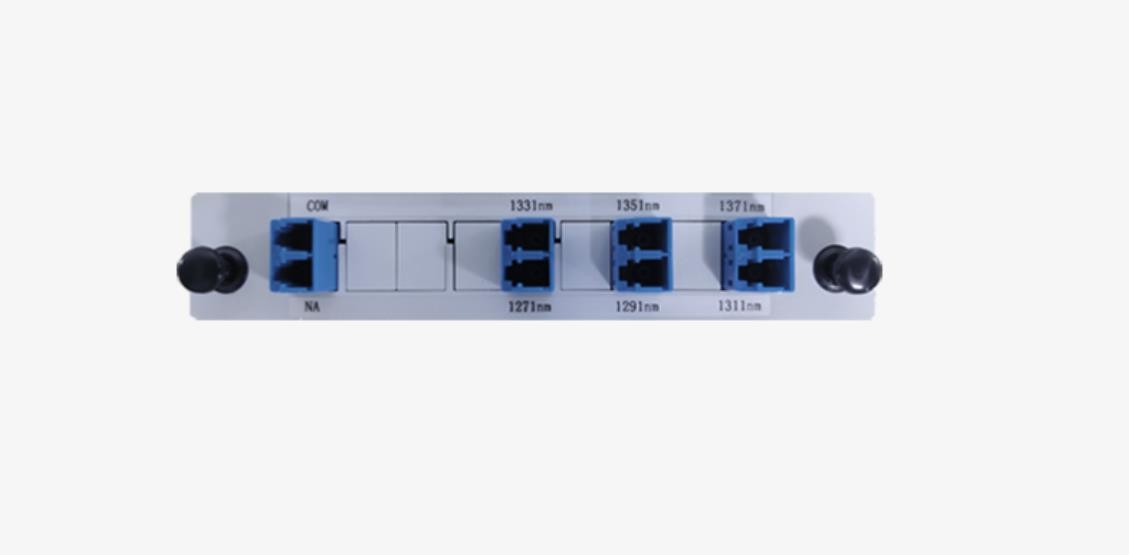

ETERN Optoelectronics's CCWDM (Compact CWDM) MUX/DEMUX is a multi-channel CWDM device with compact package designed for cost-effective multi-wavelength CWDM network applications. It is based on the Thin Film Filter (TFF) technology and and free-space technology platform. It operates at 20nm channel spacing ITU Grid CWDM wavelengths from 1270nm to 1610nm.
ETERN provides a series of customized CCWDM MUX/DEMUX devices packaged in metal box to meet different requirements on port configuration (1310nm, upgrade, and monitoring ports available), operating wavelength, fiber type, fiber length, input connector, and output connector.
Performance Specification
| Parameters | Unit | CCWDM |
| Channels | 6 | |
| Channel Center Wavelengh | nm | 1271,1291,1311,1331,1351,1371 |
| Operating wavelength | nm | 1260-1450 |
| Channel Passband (@1dB) | nm | ≥CW±6.5nm |
| IL | dB | ≤1.5 |
| Ripple | dB | ≤0.5 |
| Adjacent Channel Isolation | dB | ≥25 |
| Non Adjacent Channel Isolation | dB | ≥30 |
| Wavelength thermal stability | nm/℃ | ≤0.005 |
| Insertion Loss thermal stability | dB/℃ | ≤0.007 |
| PDL | dB | ≤0.2 |
| Return Loss | dB | ≥40 |
| Operating Temperature | ℃ | -10~70 |
| Storage Temperature | ℃ | -40～+85 |
| Dimensions | mm | 130mmx100mmx25mm |
Order Information
| CCWDM- | ¨ | ¨ | ¨ | ¨ | ¨ | ¨ | ¨ |
| CCWDM | Channel | Initial Channel | Fiber Type | Fiber Length | Connector | Model | Packaging |
| 02=2 Channel | 27=1271 | 1=250um SM | 00=Adapter | 1=N/A | M=Mux | M=Module | |
| 04=4 Channel | 29=1291 | 2=900um SM | 05=0.5m | 2=FC/UPC | D=Demux | L=Socket Box | |
| 06=6 Channel | 31=1311 | 3=2.0mm SM | 10=1.0m | 3=FC/APC | MD= | R= | |
| 08=8 Channel | 33=1331 | 4=3.0mm SM | 15=1.5m | 4=LC/UPC | Mux&Demux | Rack mount | |
| 12=12 Channel | 35=1351 | 20=2.0m | 5=LC/APC | ||||
| 16=16 Channel | 37=1371 | …… | 6=SC/UPC | ||||
| 18=18 Channel | …… | XX= Special | 7=SC/APC | ||||
| …… | 59=1591 | X= Special | |||||
| XX= Special | 61=1611 |
