| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan ETERN Optoelectronics |
| Certification: | RoHS |
| Model Number: | AAWG-1F48-C14-0505054-MDM |
| Minimum Order Quantity: | 10PCS |
| Price: | Wuhan ETERN Optoelectronics |
| Packaging Details: | carton |
| Delivery Time: | 14days |
| Payment Terms: | T/T |
| Supply Ability: | 10k per month |
| Wavelength: | 1270~1610nm,Mux Demux | Connector: | FC ST LC SC |
|---|---|---|---|
| Fiber Type: | SMF-28e Or Customized | Fiber Length: | Customized |
| Warranty: | 1year | Application: | FTTH FTTB FTTX Network,DWDM Network Add/Drop System CATV Fiberoptic System,WDM System PON Networks C |
| Operating Temperature: | -20~+75 | Package: | LGX Box |
| Channels: | DWDM | ||

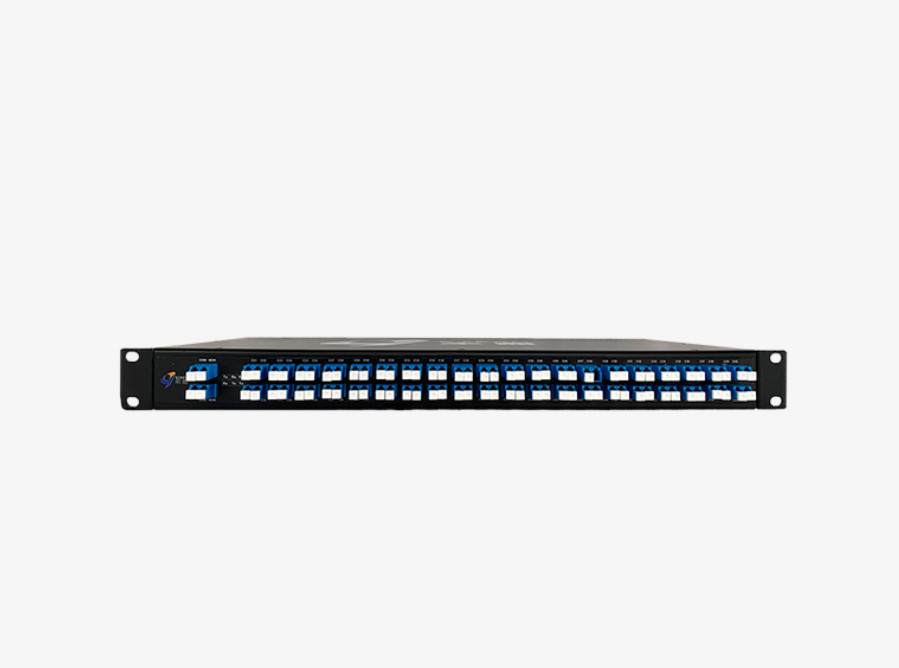

| High Light: | 48ch DWDM MUX DEMUX,DWDM MUX DEMUX 19 Inch,DWDM MUX DEMUX 1U |
||
OPTIC SPECIFICATION
| Parameters | Unit | Value | |||
| Channel Number | 40 | 48 | 48 | ||
| Channel Spacing | GHz | 100 | 100 | 100 | |
| Center Wavelength | nm | C21-C60 | C17-C64 | C14-C61 | |
| Channel Frequency | THz | 192.1~196.0 | 191.7~196.4 | 191.4~196.1 | |
| Reference Passband | nm | ±0.1 | |||
| Wavelength Accuracy | pm | ±50 | |||
| Insertion Loss | dB | ≤ 5.5 | |||
| Insertion Loss Uniformity | dB | ≤ 1.5 | |||
| Passband Ripple | dB | ≤ 0.5 | |||
| Bandwidth | @1dB | nm | ≥0.4 | ||
| @3dB | ≥0.6 | ||||
| Isolation | Adjacent Channels | dB | ≥25 | ||
| Non-adjacent Channels | ≥30 | ||||
| Total crosstalk | dB | ≥21 | |||
| Directivity | dB | ≥40 | |||
| PDL | dB | ≤0.5 | |||
| PMD | ps | ≤0.5 | |||
| Return Loss | dB | ≥40 | |||
| Chromatic Dispersion | ps/nm | ±20 | |||
| Operating Temperature | ℃ | -5 to +65 | |||
| Storage Temperature | ℃ | -40 to +85 | |||
| Relative Humidity | % | 5 to 90 | |||
