| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan Etern Optoelectronics |
| Certification: | RoHS & Telcordia GR-1221-CORE |
| Model Number: | DWDM/CWDM 3-port Device |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Plastic bag, Blister package |
| Payment Terms: | T/T |
| High Light: | DWDM TFF Filter 1x2,WDM TFF Filter 1x2,CWDM TFF Filter 1x2 |
||
|---|---|---|---|

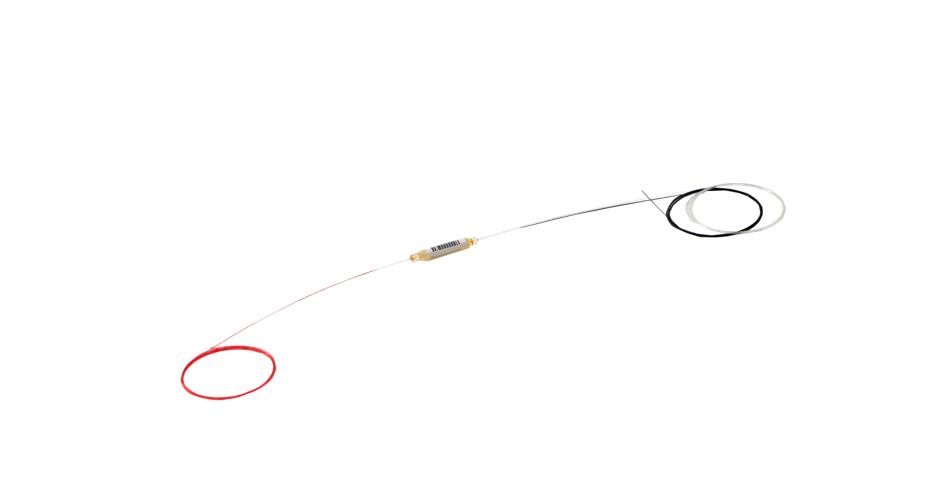

WDM CWDM DWDM TFF Filter 1x2 device glass tube
ETERN 100GHz/200GHz WDM 3-port TFF devices are available on ITU channel spacing of 100GHz/200GHz CWDM spacing. These thin film filter products utilize hermetic and epoxy-free optical path technology ti provide excellent performance and reliability.
| Features | Applications |
| *Low insertion loss, low PDL *High isolation *Wide operating wavelength *Wide operating temperature *High reliability and stability *Compact structure,and space saving |
*CATV System *WDM Transmission *Single Direction/Bi-direction Transmission |
Specification
| Parameter | Units | Value | |
| Channels | GHz | 100/200/300 | |
| Central Wavelength | nm | ITU-T Grid | |
| Pass band Flatness | dB | ≤0.5 | |
| Insertion Loss1 | Typ. | dB | 0.7 |
| Max. | 0.8 | ||
| Polarization Dependent Loss (PDL) | dB | ≤0.15 | |
| Adjacent Channel Isolation | dB | ≥25/≥25/≥30 | |
| Non-Adjacent Channel Isolation | dB | ≥45 | |
| Return Loss | dB | ≥45 | |
| Polarization Mode Dispersion(PMD) | ps | ≤0.15 | |
| Directivity | dB | ≥50 | |
| Operating Temperature | ℃ | -5 to +70 | |
| Storage Temperature | ℃ | -40 to +85 | |
Note 1: Measured with connectors； IL will be 0.3dB worse and RL will be 5dB lower with connectors.
