| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan ETERN Optoelectronics |
| Certification: | RoHS |
| Model Number: | TFF CWDM 3-port |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Packaging Details: | Individual Package |
| Payment Terms: | T/T |
| Supply Ability: | 50k per month |

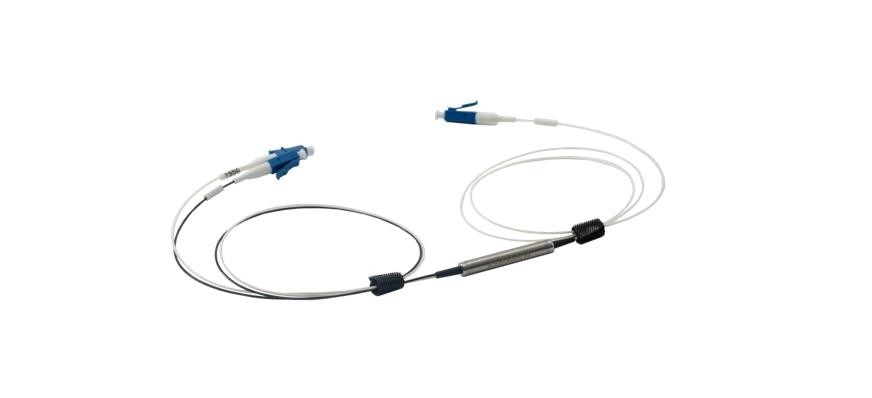

| High Light: | LC / UPC WDM Device,900um Loose Tube Cable,1m Pigtail Loose Tube Cable |
||
|---|---|---|---|
| Parameter | Specification | Unit |
| Operating Wavelength | 1260-1620 | nm |
| Pass Band Wavelength | 1260~1380 | nm |
| Reflect Band Wavelength | 1420-1620 | nm |
| Pass Band Insertion Loss | ≤ 0.8 | dB |
| Reflect Band Insertion Loss | ≤ 0.6 | dB |
| Ripple | ≤ 0.5 | dB |
| Pass Band Isolation | ≥ 40 | dB |
| Reflect Band Isolation | ≥ 15 | dB |
| Return Loss | ≥ 45 | dB |
| Directivity | ≥ 50 | dB |
| Thermal Stability | ≤ 0.005 | dB/°C |
| PDL | ≤ 0.15 | dB |
| PMD | ≤ 0.10 | ps |
| Max Optical Power | 300 | mW |
Note: Insertion loss excludes connector loss.
| Parameter | Specification | Unit |
| Operating Temperature | 0 ~ +70 | °C |
| Storage Temperature | -40 ~ +85 | °C |
| Max Tensile Load | 5 | N |
| Operating Humidity | 10 ~ 95 no condensing | %RH |
