10dB 2700MHz RF Microstrip Directional Coupler DINF Interface

Name: 10dB 2700MHz RF Microstrip Directional Coupler DINF Interface
Brand: 10dB 2700MHz RF Microstrip Directional Coupler DINF Interface
SKU: 10dB 2700MHz RF Microstrip Directional Coupler DINF Interface
Price: 1 USD
Availability: InStock
Rating: 4.6 (102 reviews)
ISBN: 14230305

Basic Information

Get Best Price Contact Now

Detail Information

Maximum Power:	200/50W	Product Name:	Rf Directional Coupler
Applications:	Fiber Optic Cabling System	VSWR:	≤1.25
Type:	15dB 20dB30dB 40dB	Diameter:	800～2700MHz
High Light:	10dB Microstrip Directional Coupler , 2700MHz Microstrip Directional Coupler , DINF Interface rf directional coupler

Product Description

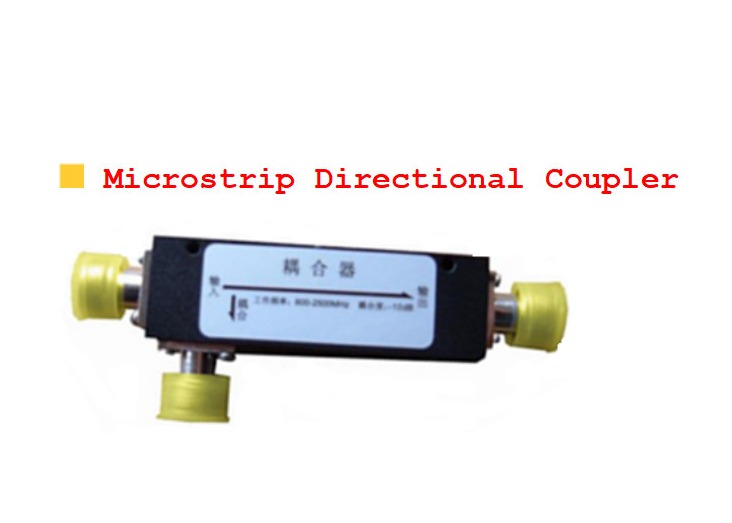

10dB 2700MHz RF Microstrip Directional Coupler DINF Interface

Type	5dB	7dB	10dB	15dB	20dB	30dB	40dB
Working frequency(MHz)	800～2700
Coupling (dB)	5±0.5	7±0.5	10±0.5	15±1.0	20±1.0	30±1.5	40±1.5
Insertion loss(dB)	≤2.2	≤1.4	≤0.8	≤0.4	≤0.35	≤0.35	≤0.35
Isolation (dB)	≥24			≥28	≥30
VSWR	≤1.25
Maximum power (W)	200/50
Characteristic Impedance(Ω)	50
Interface Type	NF,DINF
Working Temperature(℃)	-35～+75
