NF Interface RF Cable Assemblies 15dB 800MHz Cavity Coupler

Name: NF Interface RF Cable Assemblies 15dB 800MHz Cavity Coupler
Brand: NF Interface RF Cable Assemblies 15dB 800MHz Cavity Coupler
SKU: NF Interface RF Cable Assemblies 15dB 800MHz Cavity Coupler
Price: 1 USD
Availability: InStock
Rating: 5 (170 reviews)
ISBN: 14230315

Basic Information

Get Best Price Contact Now

Detail Information

Features:	High Stability	Product Name:	Cavity Coupler
Applications:	Communication Device	Characteristic Impedance:	50 Ohm
Type:	5dB 10dB 15dB 20dB30dB 40dB	Working Frequency:	320～480,350～900,800～2700MHz
High Light:	NF Interface RF Cable Assemblies , 15dB RF Cable Assemblies , 800MHz Cavity Coupler

Product Description

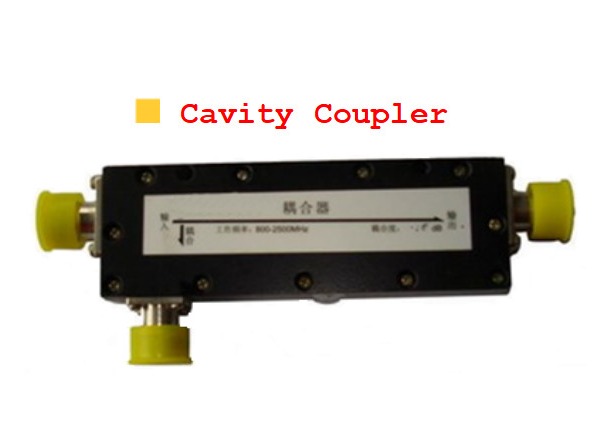

NF Interface RF Cable Assemblies 15dB 800MHz Cavity Coupler

Type	5dB	6dB	7dB	10dB	15dB	20dB	30dB	40dB
Working Frequency(MHz)	320～480,350～900,800～2700
Coupling (dB)	5±0.6	6±0.6	7±0.6	10±0.8	15±1.2	20±1.5	30±2.0	40±2.0
Insertion loss(dB)	≤2.0	≤1.5	≤1.3	≤0.7	≤0.5	≤0.25	≤0.25	≤0.25
Directionality (dB)	≥20
VSWR	≤1.25
Maximum power (W)	200/50
Characteristic Impedance(Ω)	50
Interface Type	NF,DINF
Working Temperature(℃)	-35～+75
