| Features: | Aging Resistant | Product Name: | Coaxial Cable Clips |
|---|---|---|---|
| Applications: | Railway Communication Leaky Coaxial Cable | Speed: | 100-200 |
| High Light: | stainless steel coaxial cable clamp,railway communication coaxial cable clamp,aging resistant coaxial cable clips |
||
Stainless Steel Coaxial Cable Clamp Clips Aging Resistant
metal coaxial cable clips
double coax cable clips
single coaxial cable clips
Standards Implemented
TB/T 3440-2016 Clamp for railway communication leaky coaxial cable
Product Features

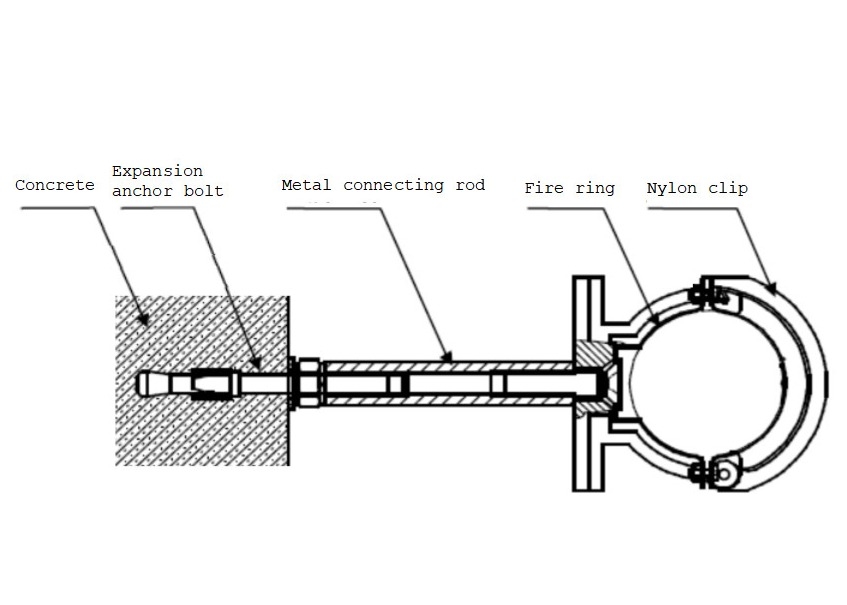

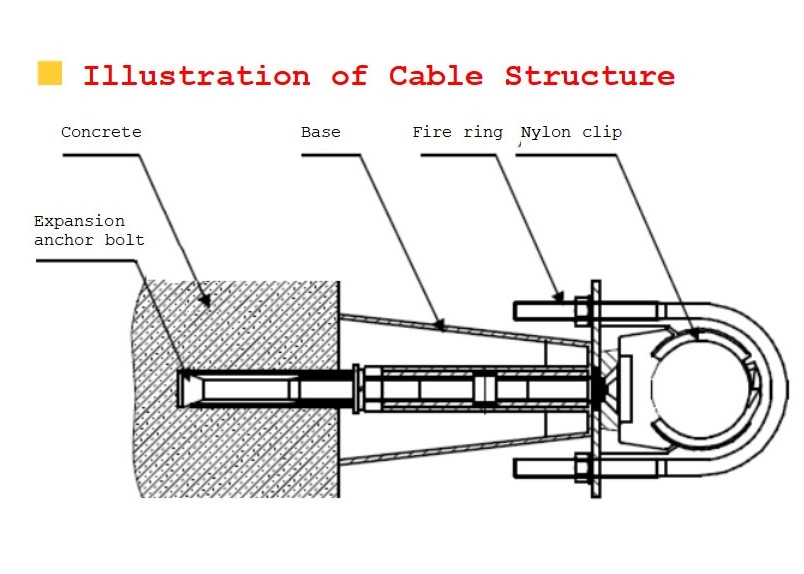

Mainly used to fix leaky cables, mainly made of stainless steel and engineering plastics, and aging resistant and flame retardant to be suitable for different high and low-temperature applications;
Use to clamp and install leaky cables in low, medium and high speed vehicular tunnel to ensure driving safety;
Excellent reliability, safety and longer life span.
Mechanical & Environmental Properties
| Item | Low-speed Clamp | Medium-speed Clamp | High-speed Clamp | |||||
| 50-22 | 50-32 | 50-42 | 50-22 | 50-32 | 50-42 | 50-32 | 50-42 | |
|
Axial Pullout Strength (N,Min.) |
150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
|
Tension Capacity (N,Min.) |
800 | 1000 | 1200 | 800 | 1000 | 1200 | 1500 | 2000 |
|
Shear Capacity (N,Min.) |
700 | 750 | 800 | 700 | 750 | 800 | 1000 | 1000 |
|
Fatigue Resistance (Times,Min.) |
2×106 | |||||||
