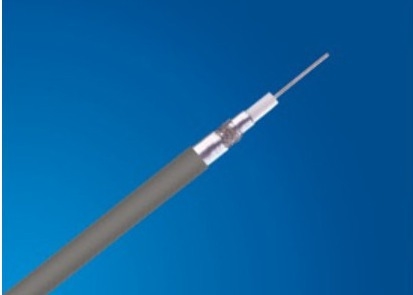

50 Ohm Flexible Radio Frequency Coaxial Cable 1 Inch In RF Transmission System

Radio Frequency (RF) Coaxial Cable

• Standards Implemented

• YD/T 1092-2013 Telecommunication cable - Foamed polyolefin dielectric, outer conductor, 50 ohm radio frequency coaxial cable for wireless communication
• YD/T 1119-2014 Telecommunication cable - Foamed polyethylene dielectric and corrugated tube super flexible radio frequency coaxial cable for wireless communication
• GB/T 17737.1-2013 Coaxial communication cables – Part 1: Generic specification - General, definitions and requirements
• IEC 61196-9:2014 Coaxial communication cables – Part 9: Sectional specification for RF flexible cables
• IEC 60332-1-2:2015 Tests on electric and optical fibre cables under fire conditions – Part 1-2: Test for vertical flame propagation for a single insulated wire or cable–Procedure for 1 kW pre-mixed flame
• IEC 61034-2:2019 Measurement of smoke density of cables burning under defined conditions – Part 2: Test procedure and requirements
• IEC 60754-1:2019 Test on gases evolved during combustion of materials from cables–Part 1: Determination of the halogen acid gas content
• IEC 60754-2:2019 Test on gases evolved during combustion of materials from cables–Part 2: Determination of acidity (by pH measurement) and conductivity
  • Product Features
• RF cable, as one kind of high frequency electronic transmission lines, is widely used for physical connection and high frequency signal transmission between wireless communication device to antenna and high frequency electronic device;
•
•
• RF cable uses the insulation of physically high-foamed polyethylene material using CO2 as foaming agent, and the insulation form of a skin-foam-skin structure. The outer conductor uses oxygen-free copper strip welded tube and of a corrugated structure to be with low attenuation, low voltage standing wave ratio (VSWR), high degree shielding and other excellent electrical properties, with omni-directional waterproof and moisture resistant properties, with high compressive strength, tensile strength and other mechanical properties, and using scientific and reasonable structural design and advanced processes to guarantee longer life span and higher use reliability of RF cable.
  • Applications
• Used for RF signal transmission in wireless distribution system;
• Used for distribution of RF power signal in RF transmission system;
• Used for interconnection and signal transmission between RF electronic devices
• Denomination Method
