| Place of Origin: | China |
|---|---|
| Brand Name: | ETERN |
| Model Number: | High Power EYDFA Module M9935 Series |
| Features: | Low Noise | Applications: | FTTH |
|---|---|---|---|
| Testing Wavelength(nm): | 1545 | Color: | Black |
| Model: | M9935 Series | Working Temp.(℃): | -5-+60 |
| High Light: | low noise Fiber Optic Amplifiers,37 dBm Fiber Optic Amplifiers,High Power edfa module |
||

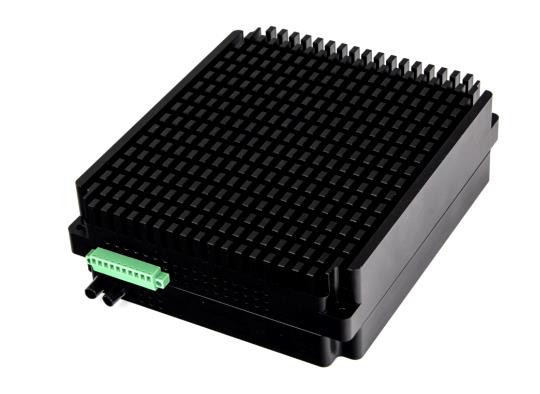

High Power EYDFA Module M9935 Series
Application
Module type fiber amplifier system
Video fiber transmission system
Optical distribution system
FTTH
Features
• Low noise
• Dual EDFA, each up to 3708m, can be controlled separately.
• High stabilty and refabilty: MTBF > 100000 hours
• Perfect status monitoring interface: RS-485 and RS-232
• High precision AGC/APC circuit power control accuracy typ÷0.05dB
• intelligent temperature control system: power consumption and hot radiation reduce 30% than common products
• Compact structure and circuit
• OEM is available
Description
The product is high output power C-Band Er-doped optical fiber amplifier module. The key components are high reliable and high precision MP system makes the control, adjustment and display intelligent and convenient. The module adopts our own patent of High Power Pump Leakage technology and patent of PUMP driving Circuit technology, to get better index and more stable performance.
