| Features: | Low Noise Figure | Applications: | CATV |
|---|---|---|---|
| Testing Wavelength(nm): | 1567 | Color: | Red |
| Model: | EYDFA | Working Temp.(℃): | -40～+60 |
| High Light: | High Power Fiber Optic Amplifier,EYDFA Fiber Optic Amplifier,OFA single channel amplifier |
||

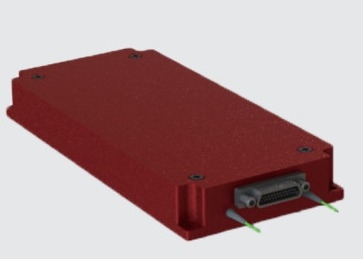

High-Power EYDFA Single/Multi channel OFA
| Parameters | Unit | Min | Typ | Max |
| Optical | ||||
| Output Power | dBm | 27 | 36 | |
| Operating Wavelength | nm | 1540 | 1567 | |
| Input Power | dBm | -5 | 0 | 15 |
| Noise Figure | dB |
≤5.5 @0dBm Input |
||
| Gain Flatness | dB |
≤2 @0dBm Input |
||
| Return Loss | dB | >45 | >45 | >45 |
| RMS@2h | % | ≤2 | ||
| Fiber Diameter | mm | Φ0.9 | ||
| Electrical | ||||
| Operating Mode | APC/AGC/ACC | APC/AGC/ACC | APC/AGC/ACC | |
| Operating Voltage | V | 5/12 | ||
| Power Consumption | W | ≤60 | ||
| Package | mm | 70×150×19 | 120×150×19 | |
| Electric Interface | J30J-25 | |||
| Environmental | ||||
| Operating Temperature | ℃ | -40～+60 | ||
| Storage temperature | ℃ | -50～+80 | ||
Features
● High Output Power
● Modular Package
● Low Noise Figure
● GFF as an Optional
Applications
● CATV
● FTTH
● ROF
Standards
● GB/T 16849-2008
● GR-1312-CORE-Telcordia
