| Features: | Ultra Compact Package | Applications: | SDH/PDH |
|---|---|---|---|
| Testing Wavelength(nm): | 1530～1562 | Color: | Red |
| Model: | EDFA | Working Temp.(℃): | -40～+70 |
| High Light: | DWDM OTN Fiber Optic Amplifier,23dBm Fiber Optic Amplifier,TEC multi channel amplifier |
||

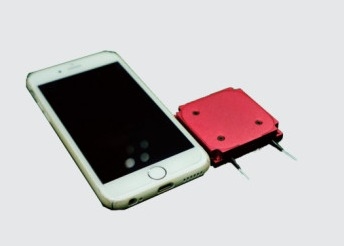

Micro EDFA Multi Channel with TEC
● Ultra compact package
● Wide operatiing WL range
● up to 23dBm output power
● low NF parameter
Applications
● DWDM OTN
● SDH/PDH
● Long-distance backbone network
Standards
● GB/T 16849-2008
● GR-1312-CORE-Telcordia
| Parameters | Unit | BA | LA | PA |
| Optical | ||||
| Output Power | dBm | >23 | >17 | >5 |
| Operating Wavelength | nm | 1530～1562 | 1530～1562 | 1530～1562 |
| Input Power | dBm | -5～+5 | -15～-5 | -30～-20 |
| Noise Figure | dB |
≤5 @-0dBm Input |
≤5 @-10dBm Input |
≤4.5 @-23dBm Input |
| Gain Flatness | dB | ≤1.5 | ≤1.2 | ≤1.2 |
| Return Loss | dB | >45 | >45 | >45 |
| RMS@2h | % | ≤1 | ≤1 | ≤1 |
| Fiber Diameter | mm | Φ0.9 | Φ0.9 | Φ0.9 |
| Electrical | ||||
| Operating Mode | APC/AGC/ACC | APC/AGC/ACC | APC/AGC/ACC | |
| Operating Voltage | V | 5/3.3 | 5/3.3 | 5/3.3 |
| Power Consumption | W | ≤12 | ≤10 | ≤10 |
| Package | mm | 50× 50× 10 | 50× 50× 10 | 50× 50× 10 |
| Electric Interface | Picolock-8 | |||
| Environmental | ||||
| Operating Temperature | ℃ | -40～+70 | -40～+70 | -40～+70 |
| Storage temperature | ℃ | -50～+80 | -50～+80 | -50～+80 |
