| Features: | Skin-Foamed-Skin PE Insulation | Product Name: | Cable Ethernet Cat 6a Sftp |
|---|---|---|---|
| Applications: | As Horizontal Floor Cabling | Cable OD: | 8.0mm |
| Highlight: | 8.0mm sftp network cable,4P sftp network cable,23AWG cable ethernet cat 6a sftp |
||

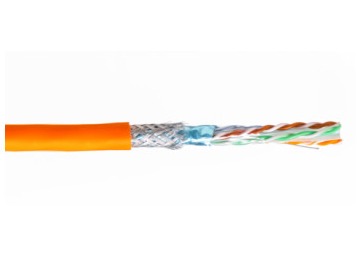

Cat6/ Cat 6a SFTP LAN Cable

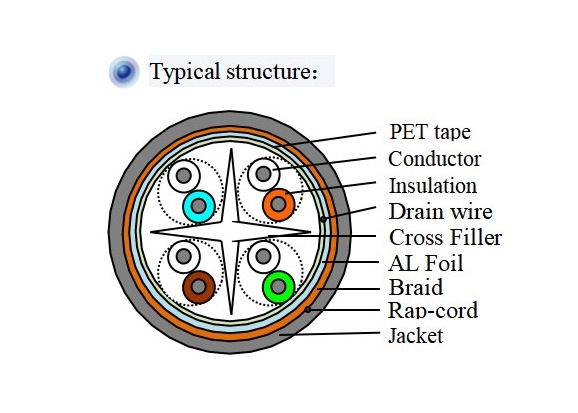

Typical structural parameters:
| Type | CAT6/6a SFTP 4P 23AWG PVC | CAT6/6a SFTP 4P 23AWG LSZH |
| Cable OD(Φmm) | 8.0 | 8.0 |
|
WET (kg/bool) |
18.3 | 18.4 |
Electrical Performance
| Project | Performance | Reference Standard | Frequency |
| ZIN(Ω) | 100±15 |
YD/T 1019 TIA/EIA-568B ISO/IEC11801 ISO/IEC61156 |
250MHz/ 500MHz |
|
ATT (dB/100m) |
32.8/48.9 | ||
| NEXT(dB/100m) | 38.3/33.8 |
Environmental Performance
| Project | Performance | |
| Min. Bending Radius | Static | 8D |
| Dynamic | 15D | |
| Temperature | Installation | 0~50℃ |
| Rated | －15℃~75℃ | |
| Storage |
－15℃~75℃ |
|
Others:
| Project | Content |
| Application Scope | used as Horizontal floor cabling. Supporting all current and planned data applications and All Ethernet applications including 1000Base-T/TX 10GBase-T etc. |
| Other |
