| Features: | Solid Bare Copper Conductor | Product Name: | Pe Insulation Cable |
|---|---|---|---|
| Applications: | Transmitting Digital Signals | OD: | 1.5mm |
| High Light: | HYA53 flame retardant cable,OD 1.5mm flame retardant cable,Solid pe insulation cable |
||

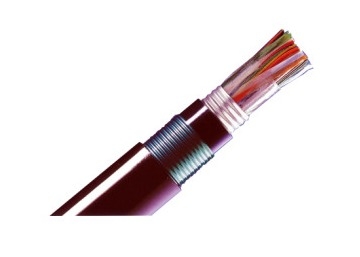

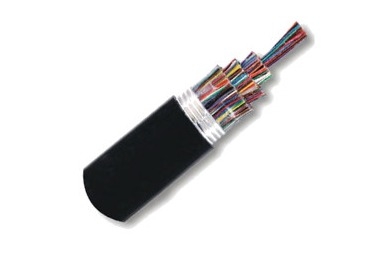

Flame retardant communication cable(ZRC-HYA,ZRC-HYA53)

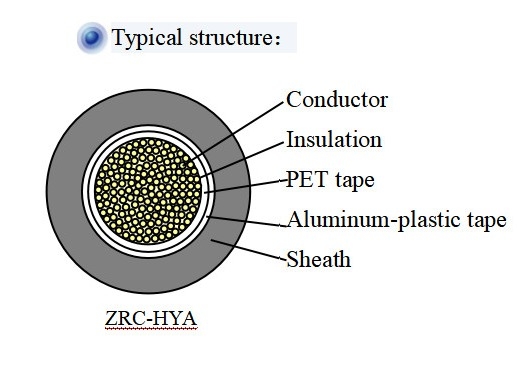

Typical structural parameters:
| Type |
Min. Thickness (mm) |
Cable OD (Φmm) |
WET (kg/km) |
Type |
Min. Thickness (mm) |
Cable OD (Φmm) |
WET (kg/km) |
Type |
| ZRC-HYA | 5×2×0.4 | 1.5 | 10.5 | 85 | 5×2×0.5 | 1.5 | 11.0 | 90 |
| 100×2×0.4 | 1.9 | 23.0 | 500 | 100×2×0.5 | 1.9 | 25.5 | 700 | |

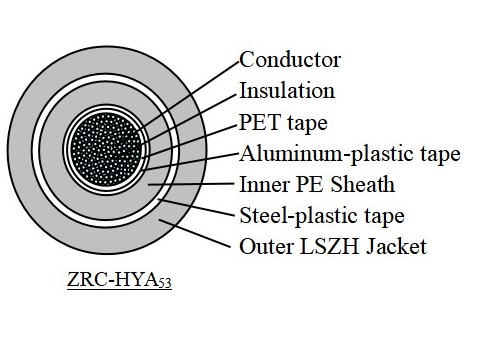

| ZRC-HYA53 | 5×2×0.4 | 1.7 | 15.5 | 195 | 5×2×0.5 | 1.7 | 15.9 | 200 |
| 100×2×0.4 | 1.9 | 28.0 | 680 | 100×2×0.5 | 1.9 | 29.6 | 890 |
Electrical Performance
| No | Project | Unit | Performance |
| 1 |
Conductor DC Resistance +20℃ |
W/km |
Conductor OD mm 0.4 0.5 MAX 148.0 95.0 |
| 2 |
Insulation Resistance +20℃ DC 100～500V |
MW.km | ≥10×103 |
Environmental Performance
| No | Project | Unit | Performance |
| 1 | Conductor Elongation | % |
0.4mm:≥10 0.5mm:≥15 |
| 2 | Insulation Tensile trength | MPa |
≥16 |
| 3 | Insulation Elongation | % | ≥300 |
Others:
| Project | Content |
| Application Scope | Used for transmitting analog signals of audio, 150kHz and below, and digital signals below 2048kbt/s and below. The working temperature of the cable is -30~+60℃, and the ambient temperature is not less than-5℃. |
