| Features: | PVC Jacket | Product Name: | Terminal Wires |
|---|---|---|---|
| Applications: | Telephone Network And The Wiring Along The Wall | Type: | HPVV HPVYZ |
| Highlight: | HPVV Terminal cable,HPVYZ Terminal cable,PVC Jacket terminal wires |
||

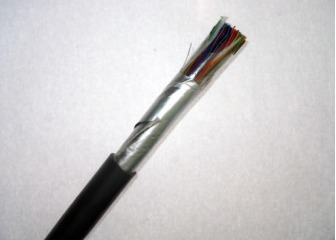

HPVV HPVYZ Terminal Cable Wires PVC Jacket AL Foil Shield

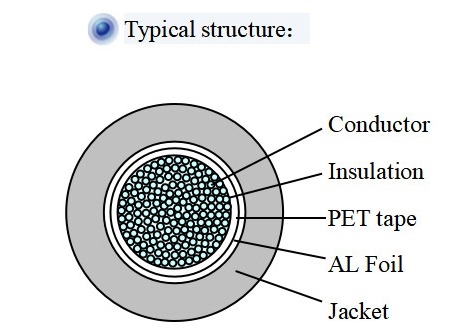

Typical structural parameters:
| Type | Pairs |
Min. Thickness (mm) |
Cable OD (Φmm) |
WET (kg/km) |
Type | Pairs |
Min. Thickness (mm) |
Cable OD (Φmm) |
| HPVV | 10×2×0.4 | 1.4 | 11.0 | 90 | 10×2×0.5 | 1.4 | 11.5 | 110 |
| 800×2×0.4 | 1.8 | 52.0 | 3070 | 800×2×0.5 | 2.0 | 57.0 | 4290 | |
| HPVYZ | 10×2×0.4 | 1.4 | 11.0 | 90 | 10×2×0.5 | 1.4 | 11.5 | 110 |
| 800×2×0.4 | 1.8 | 52.0 | 3070 | 800×2×0.5 | 2.0 | 57.0 | 4290 |
| No | Project | Unit | Performance |
| 1 |
Conductor DC Resistance +20℃ |
W/km |
Conductor OD 0.4 0.5 MAX 150.0 97.8 |
| 2 |
Insulation Resistance +20℃ DC 100～500V |
MW.km | ≥500 |
Environmental Performance
| No | Project | Unit | Performance |
| 1 | Conductor Elongation | % | ≥15 |
| 2 | Insulation Tensile trength | MPa | ≥12.5 |
| 3 | Insulation Elongation | % | ≥125 |
Others:
| Project | Content |
| Application Scope | It is suitable for connecting incoming telephone cables from the underground access room of the exchange office to the main wiring rack of the switchboard, and also for the wiring of the building inside the telephone network and the wiring along the wall. |
