| Features: | PE Insulation | Product Name: | Copper-clad Aluminum Telephone Cable |
|---|---|---|---|
| Applications: | Transmitting Digital Signals Below 2048kbt/s | Working Temperature: | -30~+60℃ |
| Highlight: | ccs copper clad steel cable,11.5mm copper clad steel cable,Telephone copper clad aluminium wire |
||

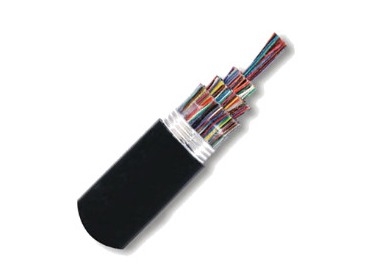

Copper-clad aluminum Telephone cable(HYA-CCA)

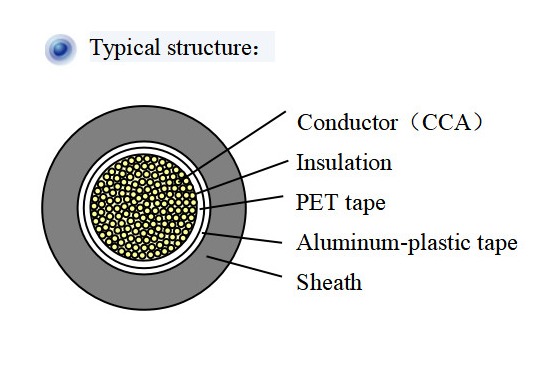

Typical structural parameters:
| Type |
Min. Thickness (mm) |
Cable OD (Φmm) |
WET (kg/km) |
Type |
Min. Thickness (mm) |
Cable OD (Φmm) |
WET (kg/km) |
| 5×2×0.5 | 1.4 | 11.5 | 60 | 200×2×0.5 | 1.6 | 32.0 | 710 |
| 100×2×0.5 | 1.4 | 24.5 | 390 | 600×2×0.5 | 2.2 | 49.5 | 1870 |
| No | Project | Unit | Performance |
| 1 |
Conductor DC Resistance +20℃ |
W/km |
Conductor OD mm 0.5 MAX 148.0 |
| 2 |
Insulation Resistance +20℃ DC 100～500V |
MW.km | ≥10×103 |
| No | Project | Unit | Performance |
| 1 | Conductor Elongation | % | ≥10 |
| 2 | Insulation Tensile trength | MPa |
≥16 |
| 3 | Insulation Elongation | % | ≥300 |
| Project | Content |
| Application Scope | Used for transmitting analog signals of audio, 150kHz and below, and digital signals below 2048kbt/s and below. The working temperature of the cable is -30~+60℃, and the ambient temperature is not less than-5℃. |
