| Features: | AL Foil Shield | Product Name: | External Wiring Cable |
|---|---|---|---|
| Ambient Temperature: | -5℃ | Working Temperature: | -30~+60℃ |
| High Light: | 14.5mm CAT LAN Cable,HDYZYZ CAT LAN Cable,AL Foil Shield external wiring cable |
||

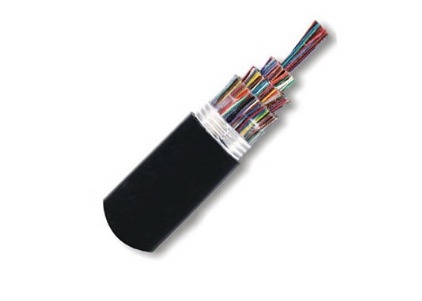

HDYZYZ CAT LAN Cable AL Foil Shield External Wiring Cable

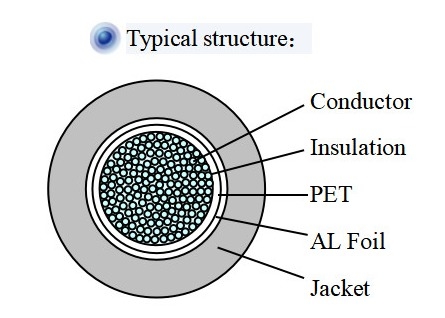

Typical structural parameters:
| Type |
Min. Thickness (mm) |
Cable OD (Φmm) |
WET (kg/km) |
Type |
Min. Thickness (mm) |
Cable OD (Φmm) |
WET (kg/km) |
| 20×2×0.4 | 1.5 | 14.5 | 170 | 20×2×0.5 | 1.5 | 17.0 | 240 |
| 1200×2×0.4 | 2.6 | 61.5 | 4760 | 1200×2×0.5 | 2.8 | 78.5 | 7530 |
| No | Project | Unit | Performance |
| 1 |
Conductor DC Resistance +20℃ |
W/km |
Conductor OD 0.4 0.5 MAX 150.0 97.8 |
| 2 |
Insulation Resistance +20℃ DC 100～500V |
MW.km | ≥500 |
| No | Project | Unit | Performance |
| 1 | Conductor Elongation | % | ≥15 |
| 2 | Insulation Tensile trength | MPa | ≥10 |
| 3 | Insulation Elongation | % | ≥150 |
| Project | Content |
| Application Scope | Used to connect the incoming communication cables to the main wiring parts, and can also be used to connect the external wiring cable to the branch equipment, which is not suitable for extending into the pipeline or soil. |
