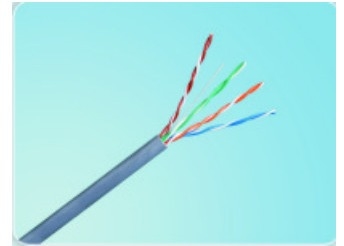

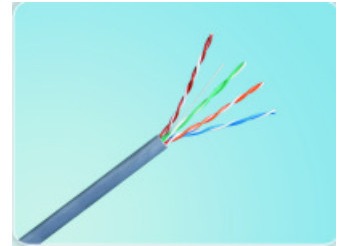

PE Insulation CAT LAN Cable PVC Jacket 5.2mm CAT5e UTP LAN Cable

Cat5/ Cat 5e UTP LAN Cable

• Solid bare copper conductor
• PE insulation
• PVC or LSZH Jacket

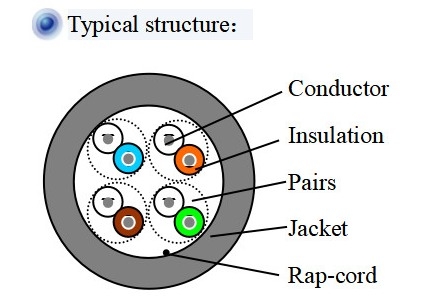

• Typical structural parameters:

•

  Type	CAT5/5e UTP 4P 24AWG	CAT5e UTP 4P 24AWG LSZH
  Cable OD(Φmm)	5.1	5.2
  WET (kg/bool)	9.0	9.1

  Electrical Performance

  Project	Performance	Reference Standard	Frequency
  ZIN(Ω)	100±15	YD/T 1019 TIA/EIA-568B ISO/IEC11801 ISO/IEC61156	100MHz
  ATT (dB/100m)	22.0
  NEXT(dB/100m)	35.3

  Environmental Performance

  Project	Performance
  Min. Bending Radius	Static	8D
  	Dynamic	15D
  Temperature	Installation	0~50℃
  	Rated	－15℃~75℃
  	Storage	－15℃~75℃

  Others:

  Project	Content
  Application Scope	used as Horizontal floor cabling. Supporting voice system, ISDN, ATM-25/51/155 Mbps, 10BASE-T,100BASE-TX/T4,1000BASE-T etc.
