| Features: | Al Foil Shielded | Product Name: | Shielded And Unshielded Cable |
|---|---|---|---|
| Applications: | Digital Switchboard | Pairs: | 32 Pairs |
| High Light: | LSZH Jacket shielded cable pair,AL Foil shielded cable pair,9.9mm shielded and unshielded cable |
||

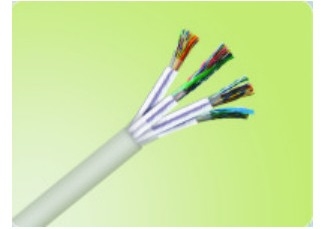

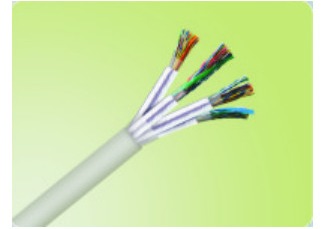

SB Series Cable(8-96Pairs Shielded &UnShielded Cable)

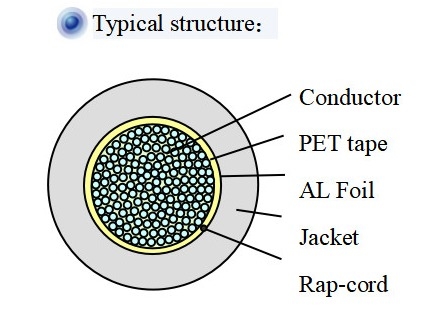

Typical structural parameters:
| Type | SBYV 0.4 | SBYV 0.5 | ||||||||
| Pairs | 8 | 16 | 24 | 32 | 48 | 64 | 8 | 16 | 24 | 32 |
| Cable OD(Φmm) | 5.6 | 7.4 | 8.8 | 9.9 | 12.5 | 13.6 | 6.6 | 8.8 | 10.3 | 11.9 |
| WET(kg/bool) | 47.8 | 71.5 | 96.7 | 129.3 | 192.3 | 245.7 | 82.8 | 97.2 | 152.3 | 263.5 |
| Type | SBYVP 0.4 | SBYVP 0.5 | ||||||||
| Pairs | 8 | 16 | 24 | 32 | 64 | 96 | 8 | 16 | 24 | 32 |
| Cable OD(Φmm) | 6.3 | 8.1 | 9.5 | 10.6 | 14.3 | 18.2 | 7.3 | 9.5 | 11.1 | 12.6 |
| WET(kg/bool) | 50.9 | 85 | 122.8 | 147.7 | 279.6 | 388 | 100.8 | 124.5 | 167.1 | 280.1 |
| Project | Performance | Frequency | |
| ZIN(Ω) | 100±15 | 30MHz | |
|
ATT (dB/100m) |
0.4 | 7.7 | |
| 0.5 | 6.2 | ||
| NEXT(dB/100m) | 42 | ||
| Project | Performance | |
| Min. Bending Radius | Static | 8D |
| Dynamic | 15D | |
| Temperature | Installation | 0~50℃ |
| Rated | －15℃~75℃ | |
| Storage | －15℃~75℃ | |
| Project | Content |
| Application Scope | used as digital switchboard and exchanger system with distributing frame |
| Other |
