| Features: | PET Tape, Steel Messenger | Product Name: | HYAC Copper Communication Cable |
|---|---|---|---|
| Working Temperature: | -30~+60℃ | Type: | HYAC |
| Highlight: | PET tape copper communication cable,HYAC copper communication cable,Steel Messenger ccs cable |
||

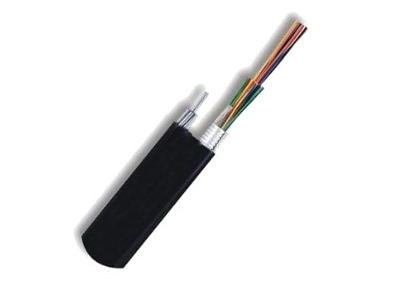

Communication cable(HYAC)
Typical structural parameters:
| Type |
Min. Thickness (mm) |
Cable OD (Φmm) |
WET (kg/km) |
Type |
Min. Thickness (mm) |
Cable OD (Φmm) |
WET (kg/km) |
| 5×2×0.4 | 1.4 | 21.5 | 200 | 5×2×0.6 | 1.4 | 23.0 | 230 |
| 300×2×0.4 | 1.6 | 44.5 | 1290 | 200×2×0.6 | 1.8 | 50.5 | 1760 |
| 5×2×0.5 | 1.4 | 22.5 | 220 | 10×2×0.7 | 1.6 | 26.0 | 310 |
| 300×2×0.5 | 1.6 | 50.0 | 1820 | 100×2×0.7 | 1.8 | 44.5 | 1280 |
| No | Project | Unit | Performance |
| 1 |
Conductor DC Resistance +20℃ |
W/km |
ConductorOD mm 0.4 0.5 0.6 0.7 MAX 148.0 95.0 65.8 48.0 |
| 2 |
Insulation Resistance +20℃ DC 100～500V |
MW.km | ≥10×103 |
| No | Project | Unit | Performance |
| 1 | Conductor Elongation | % |
0.4mm:≥10 0.5mm:≥15 0.6,0.7mm≥20 |
| 2 | Insulation Tensile trength | MPa |
≥16 |
| 3 | Insulation Elongation | % | ≥300
|
| Project | Content |
| Application Scope | Used for transmitting analog signals of audio, 150kHz and below, and digital signals below 2048kbt/s and below. The working temperature of the cable is -30~+60℃, and the ambient temperature is not less than-5℃. |
