| Features: | 4 Core | Product Name: | Pe Insulation Cable |
|---|---|---|---|
| Applications: | Transmitting Analog Signals Of Audio | Type: | HYAT |
| Highlight: | HYAT 4 core communication cable,2.6mm 4 core communication cable,Solid pe insulation cable |
||

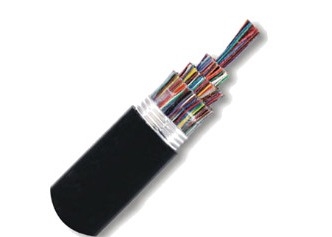

HYA HYAT 4 Core Communication Cable

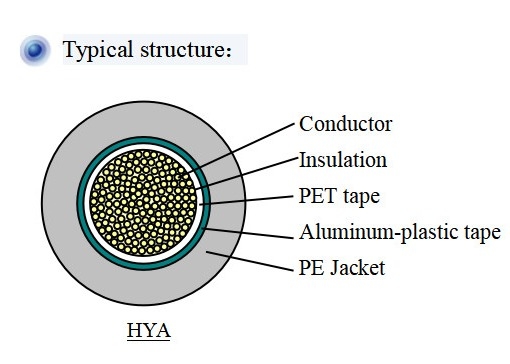

Typical structural parameters
| Type |
Min. Thickness (mm) |
Cable OD (Φmm) |
WET (kg/km) |
Type |
Min. Thickness (mm) |
Cable OD (Φmm) |
WET (kg/km) |
Type |
| HYA | 5×2×0.4 | 1.4 | 10.0 | 50 | 5×2×0.6 | 1.4 | 12.0 | 80 |
| 2400×2×0.4 | 2.4 | 75.0 | 7500 | 800×2×0.6 | 2.2 | 70.5 | 5620 | |
| 5×2×0.5 | 1.4 | 11.0 | 60 | 5×2×0.7 | 1.4 | 13.0 | 90 | |
| 1600×2×0.5 | 2.4 | 78.5 | 7700 | 600×2×0.7 | 2.2 | 68.5 | 5690 | |
| HYAT | 5×2×0.4 | 1.4 | 10.5 | 60 | 5×2×0.6 | 1.4 | 12.5 | 100 |
| 2400×2×0.4 | 2.6 | 89.0 | 9780 | 800×2×0.6 | 2.4 | 81.0 | 7420 | |
| 5×2×0.5 | 1.4 | 11.5 | 80 | 5×2×0.7 | 1.4 | 13.5 | 120 | |
| 1600×2×0.5 | 2.6 | 90.0 | 10110 | 600×2×0.7 | 2.4 | 78.5 | 7510 |
| No | Project | Unit | Performance |
| 1 |
Conductor DC Resistance +20℃ |
W/km |
Conductor ODmm 0.4 0.5 0.6 0.7 MAX 148.0 95.0 65.8 48.0 |
| 2 |
Insulation Resistance +20℃ DC 100～500V |
MW.km |
Unfilled filled MIN 10×103 3×103 |
| No | Project | Unit | Performance |
| 1 | Conductor Elongation | % |
0.4mm:≥10 0.5mm:≥15 0.6,0.7mm≥20 |
| 2 | Insulation Tensile trength | MPa |
≥16 |
| 3 | Insulation Elongation | % | ≥300 |
Others:
| Project | Content |
| Application Scope | Used for transmitting analog signals of audio, 150kHz and below, and digital signals below 2048kbt/s and below. The working temperature of the cable is -30~+60℃, and the ambient temperature is not less than-5℃. |
