| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan ETERN Optoelectronics |
| Certification: | RoHS |
| Model Number: | FLS100C502S |
| Minimum Order Quantity: | 2PCS |
| Price: | Negotiable |
| Packaging Details: | blister box |
| Payment Terms: | T/T |
| Supply Ability: | 100k per month |
| Product Name: | CFP MSA Compliant Optical Transceiver | Warranty: | 1 Year |
|---|---|---|---|
| Application: | Support Datacom | Transmission Distance: | 10KM |
| DDM: | Yes | Operating Temperature: | 0~70 |
| High Light: | CFP MSA compliant Optical Transceiver,IEEE802.3ba Optical Transceiver,2KM 100g lr4 transceiver |
||
Applications:
1. 100GbE IEEE 802.3ba 100GBASE-LR4
2. OTN-OTU4
Description:

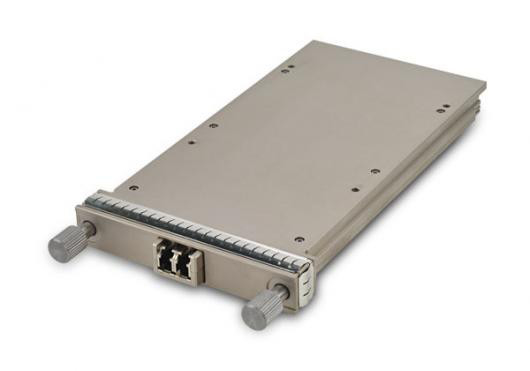

The CFP 100GEBASE-LR4 optical transceiver is a hot pluggable 100Gbps small-form-factor transceiver module .It is compliant with IEEE802.3ba and CFP MSA. The module is a multi-rate optical transceiver and intended to support Telecom and Datacom applications.
Features:
1. 1310 nm window cooled EA-DFB LD and PIN ROSA
2. Operating optical data rate up to 112Gbps
3. CFP MSA compliant
4. Compliant to IEEE 802.3ba specification for 100GBASE-LR4
5. Compliant to OTU4
6. Transmission distance up to 10km
7. Operating electrical serial data rate up to 27.952493Gbps
8. 4 parallel electrical serial interface and AC coupling of CML signals
9. MDIO real-time digital diagnostic(Optional) and control capabilities
10. TX input and RX output CDR retiming
11. Hot pluggable
12. Total Power Consumption<6W
13. Operating case temperature 0°C to +70°C
14. 3.3V power supply
15. Duplex LC receptacle optical interface
16. Compliant with CFP MSA hardware specification
17. Compliant with CFP MSA management specification
18. RoHS compliant
Optical Characteristics:
| Parameter | Symbol | Unit | Value | ||
| Min | Typ | Max | |||
| Optical Transmitter Characteristics | |||||
| Signaling Rate for Each Lane (100GbE) |
- |
Gbps |
25.78125 | ||
| Signaling Rate for Each Lane (OTU4) | 27.9525 | ||||
|
Four lane Wavelength Range |
入 1 |
nm |
1294.53 | 1295.56 | 1296.59 |
| 入 2 | 1299.02 | 1300.05 | 1301.09 | ||
| 入 3 | 1303.54 | 1304.58 | 1305.63 | ||
| 入 4 | 1308.09 | 1309.14 | 1310.19 | ||
| Average Launch Power for Each Lane(100GbE) |
Pa |
dBm |
-4.3 | +4.5 | |
| Average Launch Power for Each Lane(OTU4) | -2.9 | +4.5 | |||
| Extinction Ratio (100GbE) |
EX |
dB |
7 | ||
| Extinction Ratio (OTU4) | 7 | ||||
| Optical Receiver Characteristics | |||||
| Receiver Sensitivity in OMA for Each Lane(100GbE) |
Sen |
dBm |
- | - | -8.6(1) |
| Receiver Sensitivity for Each Lane(OTU4) | -10.3(2) | ||||
| Los Assert | dBm | -15 | |||
| Los De-assert | dBm | -19 | |||
| Los Hysteresis | dB | 1 | 2 | ||
Ordering Information:
| Description | Part NO. | Model | Package | Date Rate (bit/s) | Wavelength | Reach | TOP (C) | ||
| 100G | 100Gbps-2KM-LWDM-SM-CFP | FLS100C502S | 100G-SLR/2KM | CFP-LC | 112G | 1310nm/LWDM4 | 2KM | 0~70 | |
| 100Gbps-10KM-LWDM-SM-CFP | FLS100C510S | 100G-LR/10KM | CFP-LC | 112G | 1310nm/LWDM4 | 10KM | 0~70 | ||
| 100Gbps-2KM-LWDM-SM-CFP2 | FLS100C602S | 100G-SLR/2KM | CFP2-LC | 112G | 1310nm/LWDM4 | 2KM | 0~70 | ||
| 100Gbps-10KM-LWDM-SM-CFP2 | FLS100C610S | 100G-LR/10KM | CFP2-LC | 112G | 1310nm/LWDM4 | 10KM | 0~70 | ||
| 100Gbps-10KM-LWDM-SM-CFP2-RX | FLS100C900S | 100G-RX | CFP2-LC | 112G | 1310nm/LWDM4 | 10KM | 0~70 | ||
