| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan Etern Optoelectronics |
| Certification: | RoHS CE FCC |
| Model Number: | FLS25C110S |
| Minimum Order Quantity: | 10pcs |
| Price: | Negotiable |
| Packaging Details: | Blister Box |
| Payment Terms: | T/T |
| Supply Ability: | 10K per month |
| Product Name: | SFP28 | Wavelength: | 1310nm |
|---|---|---|---|
| Distance: | 10km | Fiber Type: | SMF |
| Warranty: | 1 Years | Connector: | LC |
| Application: | FTTH FTTB FTTX Network,High-density Video Routers,Telecom,Fiber Channel,DVI Extra Systerm | Certification: | CE RoHS FCC |
| Data Rate: | 10Gb/s | Transmission Distance: | 10KM |
| DDM: | Yes | Operating Temperature: | 0~70 |
| High Light: | FTTX Network optical fiber transceiver,10KM 1310nm optical fiber transceiver,SMF 25g sfp28 transceiver |
||
Features
1. Compliant to SFP28 MSA
2. Fully RoHS Compliant
3. All metal housing for superior EMI performance
4. Operating data rate up to 25.78Gbps
5. High sensitivity Pin photodiode and TIA
6. LC duplex connector
7. Hot pluggable 20pin connector
8. Low power consumption<1.2 W
9. 0℃ to 70℃operating wide temperature range
10. Single +3.3V±5% power supply
11. Digital Monitoring SFF-8472 Rev10.2 compliant
Description

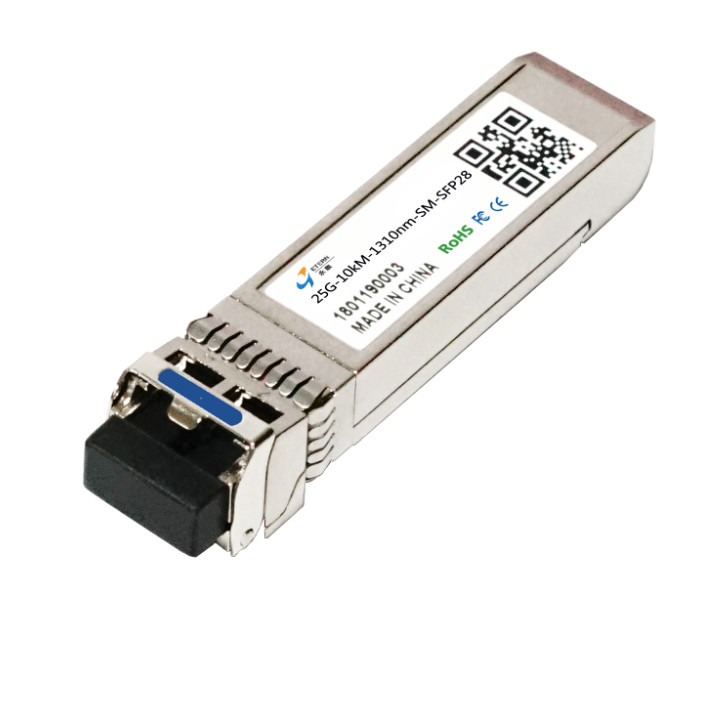

The laser based 25Gigabit SFP28 Transceiver is designed to transmit and receive serial optical data over single mode optical fiber with 10KM. They are compliant with SFF-8431,SFF-8432. The transmitter converts serial CML electrical data into serial optical data. The receiver converts serial optical data into serial CML electrical data.Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
| Description: | 25Gbps-10KM-1310nm-SM-SFP28 |
| Part NO: | FLS25C110S |
| Package: | SFP28 |
| Date Rate (bit/s): | 25G |
| Wavelength: | 1310nm |
| Reach: | 10KM |
| TOP°C: |
0℃ ~ 70℃ |
Ordering Information
| Description | Part NO. | Package | Date Rate (bit/s) | Wavelength | Reach | Temperature |
| 25Gbps-10KM-1310nm-SM- SFP28 | FLS25C110S | SFP28 | 25G | 1310nm | 10KM | 0℃ ~ 70℃ |
