| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan ETERN Optoelectronics |
| Certification: | RoHS |
| Model Number: | FLS40C101S |
| Minimum Order Quantity: | 2PCS |
| Price: | Negotiable |
| Packaging Details: | blister box |
| Payment Terms: | T/T |
| Product Name: | QSFP+ | Wavelength: | 850nm |
|---|---|---|---|
| Date Rate (bit/s):: | 41.2G | Reach: | 100m |
| Package: | QSFP+-MPO | Feature: | QSFP MSA Compliant |
| High Light: | 850nm qsfp+ transceiver module,XLPPI interface qsfp+ transceiver module,100M 40gb transceiver |
||

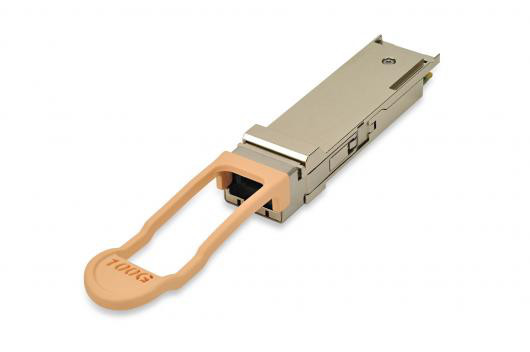

40Gbps-100M-850nm-MM-QSFP+ optical transceiver
QSFP-40G-SR4 Module supports link lengths of 100m and 150m respectively on laser-optimized OM3 and OM4 multimode fiber cables. It primarily enables high-bandwidth 40G optical links over ribbon fiber cables terminated with multi-fiber connectors, and could also be used along with ribbon to duplex fiber breakout cables for connectivity to four 10GBASE-SR optical interfaces.
Features:
1. 4 independent full-duplex channels
2. Up to 100 meters transmission over OM3 MMF
3. Up to 150 meters transmission over OM4 MMF
4. Up to 11.2Gbps data rate per channel
5. MTP/MPO optical connector
6. QSFP MSA compliant
7. Digital diagnostic capabilities
8. CML compatible electrical I/O
9. Single +3.3V power supply
10. XLPPI electric interface (with 1.5W Maxpower)
11. Operating case temperature: 0ºC~70ºC
12. RoHS-6 compliant
Applications:
1. Rack to rack
2. Data Center
3. Infiniband QDR, DDR and SDR
4. 40G Ethernet
Ordering Information:
|
|
Description |
Part NO. |
Model |
Package |
Date Rate (bit/s) |
Wavelength |
Reach |
TOP (C) |
|
|
40G |
QSFP+ SR4 |
FLS40C101S |
40G-SR/100M |
QSFP+-MPO |
41.2G |
850nm |
100M |
0~70 |
|
