| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan ETERN Optoelectronics |
| Certification: | SFF-8431,SFF-8432 |
| Model Number: | FLS25C010S |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Packaging Details: | blister box |
| Payment Terms: | T/T |
| Supply Ability: | 100k per month |
| Wavelength: | 850nm | Product Name: | SFP28 |
|---|---|---|---|
| Connector: | LC | Warranty: | 1year |
| Application: | FTTH FTTB FTTX Network,CWDM System,DWDM Network Add/Drop System CATV Fiberoptic System,WDM System PON Networks C | Operating Temperature: | 0℃~+70℃ |
| Reach: | 100m | ||
| High Light: | 100M sfp28 optical transceiver,MM sfp28 optical transceiver,25Gbps sfp module 850nm |
||
Feature:
1. Compliant to SFP+ MSA
2. Fully RoHS Compliant
3. All metal housing for superior EMI performance
4. Operating data rate up to 25.78Gbps
5. High sensitivity Pin photodiode and TIA
6. Up to 70m transmission on MMF OM3 and 100m transmission on MMF OM4
7. LC duplex connector
8. Hot pluggable 20pin connector
9. Low power consumption<1.2 W
10. 0℃ to 70℃operating wide temperature range
11. Single +3.3V±5% power supply
12. Digital Monitoring SFF-8472 Rev10.2 compliant
Description:

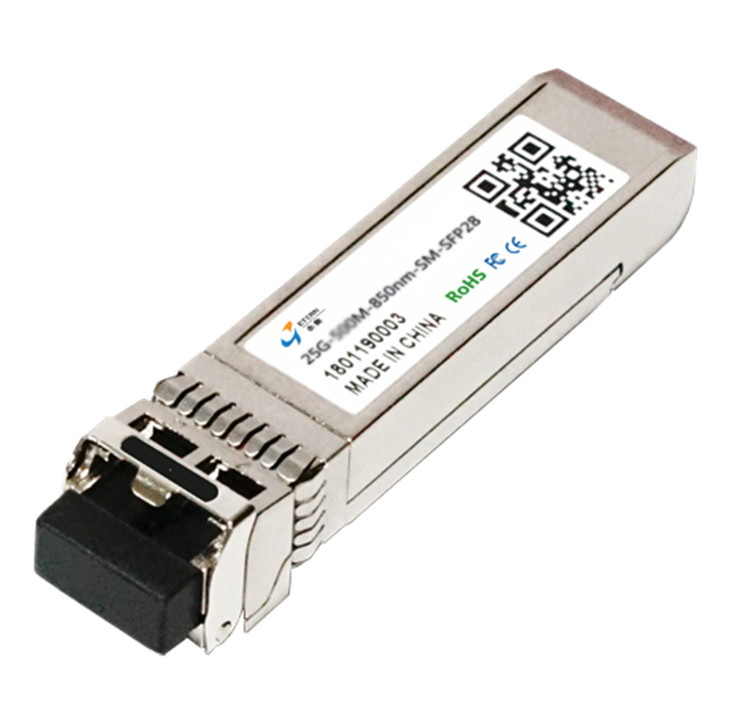

The laser based 25Gigabit SFP28 Transceiver is designed to transmit and receive serial optical data over multimode optical fiber with 100m. They are compliant with SFF-8431,SFF-8432. The transmitter converts serial CML electrical data into serial optical data compliant with the IEEE802.3by standard. The receiver converts serial optical data into serial CML electrical data.Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
| Description: | 25Gbps-100M-850nm-MM-SFP28 |
| Part NO: | FLS25C010S |
| Package: | SFP28 |
| Date Rate (bit/s): | 25G |
| Wavelength: | 850nm |
| Reach: | 100M |
| TOP°C: | 0℃ ~ 70℃ |
Ordering Information:
| Description | Part NO. | Package | Date Rate (bit/s) | Wavelength | Reach | TOP (C) | |
| 25G | 25Gbps-100M-850nm-MM-SFP28 | FLS25C010S | SFP28 | 25G | 850nm | 100M | 0℃ ~ 70℃ |
