| Features: | PVC Sheath | Product Name: | Cat3/Cat5 Outdoor LAN Cable |
|---|---|---|---|
| Applications: | Trunk Cabling | Cable OD: | 14.5mm |
| High Light: | 14.5mm CAT LAN Cable,PVC Sheath CAT LAN Cable,Cat3 Outdoor LAN Cable |
||

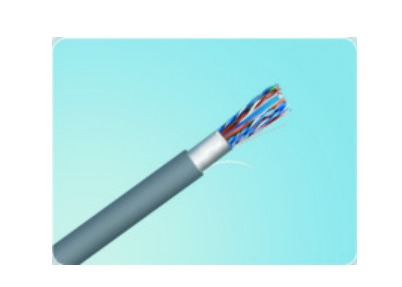

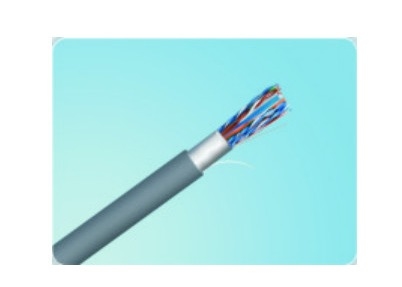

Cat3/Cat5 Outdoor LAN Cable

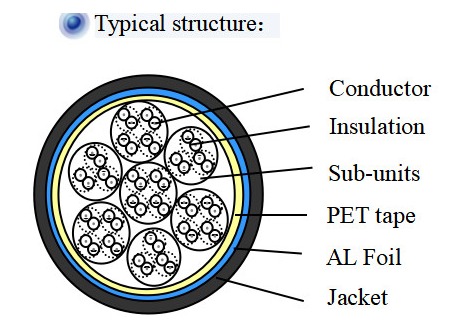

Typical structural parameters:
| Type | UTP CAT3/CAT5 25P 24AWG | UTP CAT3/CAT5 50P 24AWG | UTP CAT3/CAT5 25P 24AWG PVC&PE | UTP CAT3/CAT5 50P 24AWG PVC&PE |
| Cable OD(Φmm) | 12.6 | 16.5 | 14.5 | 18.9 |
|
WET (kg/bool) |
48.5 | 88.1 | 62.8 | 111.4 |
Electrical Performance
| Project | Performance | Reference Standard | Frequency |
| ZIN(Ω) | 100±15 |
TIA/EIA 568A YD/T 1019 |
100MHz |
|
ATT (dB/100m) |
22.0 | ||
| NEXT(dB/100m) | 32.3 |
Environmental Performance
| Project | Performance | |
| Min. Bending Radius | Static | 8D |
| Dynamic | 15D | |
| Temperature | Installation | 0~50℃ |
| Rated | －15℃~75℃ | |
| Storage | －15℃~75℃ | |
Others:
| Project | Content |
| Application Scope | This sense product is mainly used as trunk cabling. Electrical Characteristics are seem to be equal 4 pairs Horizontal floor cables |
| Other |
