| Features: | 25 Pair | Product Name: | Unshielded Twisted Pair |
|---|---|---|---|
| Applications: | Trunk Cabling | Cable OD: | 12.7mm |
| High Light: | 12.7mm cat5 25 pair cable,trunk cabling cat5 25 pair cable,utp unshielded twisted pair |
||

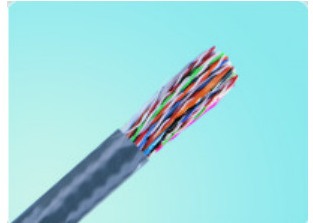

Cat3/ Cat5 UTP LAN Cable

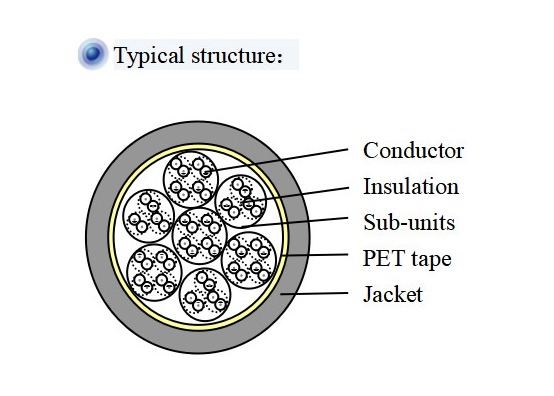

Typical structural parameters:
| Type | CAT3/5 UTP 25P | CAT3/5 UTP 50P | CAT3/5 UTP 100P |
| Cable OD(Φmm) | 12.7 | 17.0 | 24.8 |
|
WET (kg/bool) |
51.7 | 96.9 | 180.1 |
Electrical Performance
| Project | Performance | Reference Standard | Frequency |
| ZIN(Ω) | 100±15 | YD/T 1019 | 100MHz |
|
ATT (dB/100m) |
22.0 | ||
| NEXT(dB/100m) | 32.3 |
Environmental Performance
| Project | Performance | |
| Min. Bending Radius | Static | 8D |
| Dynamic | 15D | |
| Temperature | Installation | 0~50℃ |
| Rated | -15℃~75℃ | |
| Storage |
-15℃~75℃
|
|
Others:
| Project | Content |
| Application Scope | This sense product is mainly used as trunk cabling.. Electrical Characteristics are seem to be equal 4 pairs Horizontal floor cables |
| Other |
