| Features: | Tinned Copper Braid | Product Name: | Cat7 Sstp Cable |
|---|---|---|---|
| Applications: | Supporting All Ethernet Applications | Cable OD: | 8.2mm |
| High Light: | Tinned Copper Braid CAT LAN Cable,4P CAT LAN Cable,8.2mm cat7 sstp cable |
||

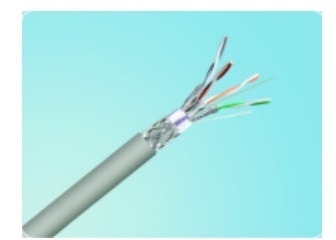

Cat7 SSTP LAN Cable

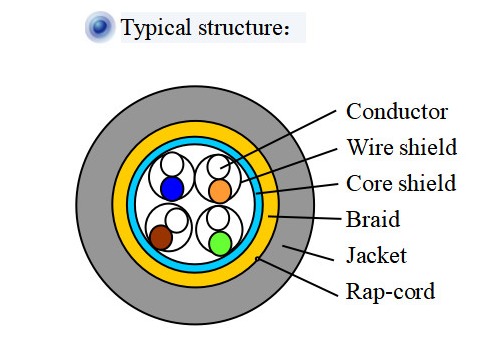

Typical structural parameters:
| Type | CAT7 SSTP 4P 23AWG | CAT7 SSTP 4P 23AWG |
| Cable OD(Φmm) | 8.2 | 8.2 |
|
WET (kg/bool) |
23.6 | 23.7 |
Electrical Performance
| Project | Performance | Reference Standard | Frequency |
| ZIN(Ω) | 100±15 |
YD/T 1019 TIA/EIA-568B ISO/IEC11801 ISO/IEC61156 |
600MHz |
|
ATT (dB/100m) |
50.1 | ||
| NEXT(dB/100m) | 60.7 |
Environmental Performance
| Project | Performance | |
| Min. Bending Radius | Static | 8D |
| Dynamic | 15D | |
| Temperature | Installation | 0~50℃ |
| Rated | －15℃~75℃ | |
| Storage | －15℃~75℃ | |
Others:
| Project | Content |
| Application Scope | used as Horizontal floor cabling. Supporting all current and planned data applications and All Ethernet applications including 1000Base-T/TX 10GBase-T etc. |
| Other |
