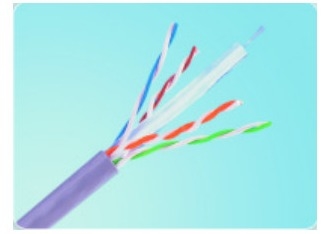

4P 23AWG CAT6 UTP LAN Cable PVC Jacket As Horizontal Floor Cabling

Cat6/ Cat 6a UTP LAN Cable

• Project	Performance
  Min. Bending Radius	Static	8D
  	Dynamic	15D
  Temperature	Installation	0~50℃
  	Rated	－15℃~75℃
  	Storage	－15℃~75℃

• Solid bare copper conductor
• Skin-Foamed-Skin PE insulation
• PVC or LSZH Jacket

•

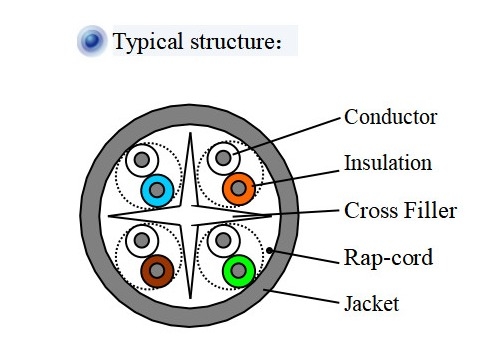

• Typical structural parameters:

•

  Type	CAT6/6a UTP 4P 23AWG PVC	CAT6/6a UTP 4P 23AWG LSZH
  Cable OD(Φmm)	6.5	6.5
  WET (kg/bool)	13.0	13.1

  Electrical Performance



  Project	Performance	Reference Standard	Frequency
  ZIN(Ω)	100±15	YD/T 1019 TIA/EIA-568B ISO/IEC11801 ISO/IEC61156	250MHz/ 500MHz
  ATT (dB/100m)	32.8/48.9
  NEXT(dB/100m)	38.3/33.8

  Others:

  Project	Content
  Application Scope	used as Horizontal floor cabling. Supporting voice system, ISDN, ATM-25/51/155 Mbps, 10BASE-T,100BASE-TX/T4,1000BASE-T etc.
