| Features: | LSZH Jacket | Product Name: | Cat 5e Ftp Lan Cable |
|---|---|---|---|
| Applications: | Horizontal Floor Cabling | Cable OD: | 6.2MM |
| High Light: | LSZH Jacket CAT LAN Cable,4 Pair CAT LAN Cable,24AWG Cat 5e ftp lan cable |
||

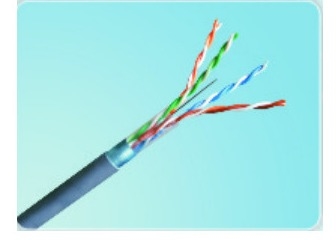

Cat5/ Cat 5e FTP LAN Cable

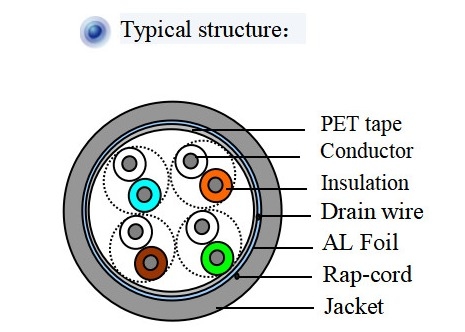

Typical structural parameters:
| Type | CAT5e FTP 4P 24AWG PVC | CAT5e FTP 4P 24AWG LSZH | CAT5e ZFTP 4P 24AWG PE |
| Cable OD(Φmm) | 6.2 | 6.2 | 6.2*2.4 |
|
WET (kg/bool) |
12.9 | 13.0 | 18.0 |
Electrical Performance
| Project | Performance | Reference Standard | Frequency |
| ZIN(Ω) | 100±15 |
YD/T 1019 TIA/EIA-568B ISO/IEC11801 ISO/IEC61156 |
100MHz |
|
ATT (dB/100m) |
22.0 | ||
| NEXT(dB/100m) | 35.3 |
Environmental Performance
| Project | Performance | |
| Min. Bending Radius | Static | 8D |
| Dynamic | 15D | |
| Temperature | Installation | 0~50℃ |
| Rated | －15℃~75℃ | |
| Storage | －15℃~75℃ | |
Others:
| Project | Content |
| Application Scope | used as Horizontal floor cabling. Supporting voice system, ISDN, ATM-25/51/155 Mbps, 10BASE-T,100BASE-TX/T4,1000BASE-T etc. |
| Other |
