Name: PE Insulation Fiber Optic Trunk Cable 4.8mm 2 Pair Shielded Cable
Brand: PE Insulation Fiber Optic Trunk Cable 4.8mm 2 Pair Shielded Cable
SKU: PE Insulation Fiber Optic Trunk Cable 4.8mm 2 Pair Shielded Cable
Price: 1 USD
Availability: InStock
Rating: 4.7 (132 reviews)
ISBN: 14241205

Detail Information

Features:

Annealed Tinned Copper Braid

Product Name:

2 Pair Shielded Cable

Applications:

Trunk Cable

OD:

4.8mm

High Light:

Solid fiber optic trunk cable

PE insulation fiber optic trunk cable

4.8mm 2 pair shielded cable

Product Description

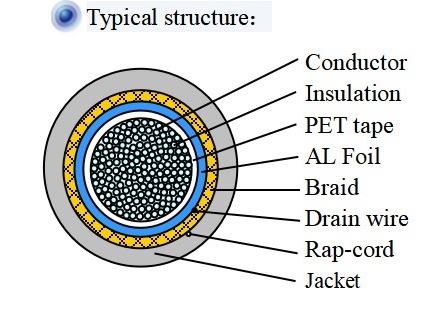

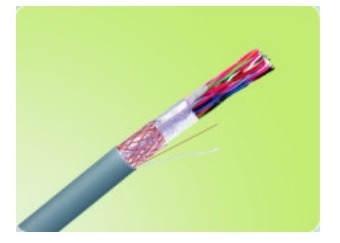

SE Series Trunk Cable(2-42Pairs Shielded Cable)

Solid bare copper conductor
PE insulation
PET tape
AL Foil Shield
Annealed Tinned Copper Braid
PVC or LSZH Jacket
Typical structural parameters:

Type	SEYVP 0.4						SEYVP 0.5
Pairs	2	4	8	16	32	42	4	8	16	32
Cable OD(Φmm)	4.8	5.6	6.9	9.5	12.4	13.4	6.2	7.8	10.5	13.8
WET(kg/bool)	26.6	39.9	62.9	104.9	174.8	203.4	42.9	66.3	129.5	229

Electrical Performance

Project		Performance	Frequency
ZIN(Ω)		120±15	8MHz
ATT (dB/100m)	0.4	47
	0.5	3.8
NEXT(dB/100m)		59

Environmental Performance

Project	Performance
Min. Bending Radius	Static	8D
Min. Bending Radius	Dynamic	15D
Temperature	Installation	0~50℃
	Rated	－15℃~75℃
	Storage	－15℃~75℃

Others:

Project	Content
Application Scope	used as digital switchboard and exchanger system with distributing frame
