| Features: | LSZH Jacket | Product Name: | Communication Wires And Cables |
|---|---|---|---|
| Applications: | As Digital Switchboard And Exchanger System | OD: | 8.0MM |
| High Light: | 8.0mm CAT LAN Cable,PET tape CAT LAN Cable,LSZH Jacket communication wires and cables |
||

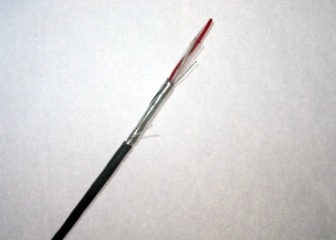

PET Tape CAT LAN Cable LSZH Jacket Communication Wires And Cables

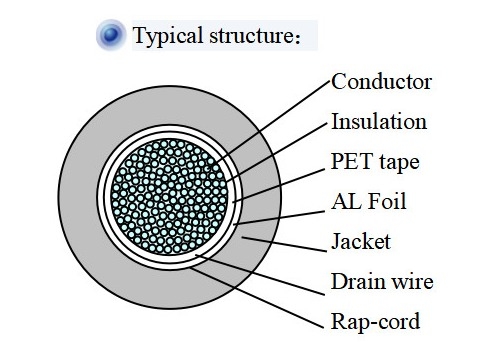

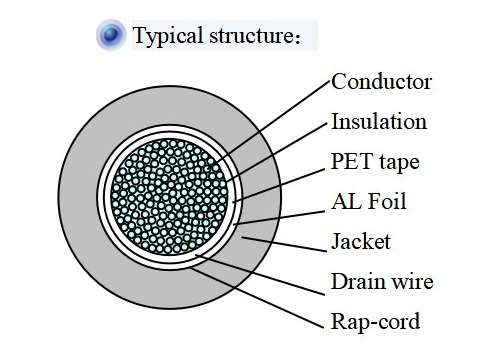

Typical structural parameters:
| Type |
Min. Thickness (mm) |
Cable OD (Φmm) |
WET (kg/km) |
Type |
Min. Thickness (mm) |
Cable OD (Φmm) |
WET (kg/km) |
| 2×2×awg24 | 0.6 | 8.0 | 30 | 1×2×awg20 | 0.6 | 7.5 | 30 |
| 112×2×awg24 | 1.1 | 28.5 | 540 | 56×2×awg20 | 1.1 | 29.0 | 545 |
| No | Project | Unit | Performance |
| 1 |
Conductor DC Resistance +20℃ |
W/km |
Conductor OD Awg24 Awg20 M AX 160 112 |
| 2 |
Insulation Resistance +20℃ DC 100～500V |
MW.km | ≥5000 |
| No | Project | Unit | Performance |
| 1 | Conductor Elongation | % |
awg24≥10 awg20≥15 |
| 2 | Insulation Tensile trength | MPa | ≥10 |
| 3 | Insulation Elongation | % | ≥300 |
| Project | Content |
| Application Scope | used as digital switchboard and exchanger system with distributing frame |
