| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan Etern Optoelectronics |
| Certification: | RoHS |
| Model Number: | MTO/MPO Pre-terminal Sector Fiber |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Features: | Small Size, Easy Connection, LC Duplex Fixation, Easy For TX And RX Identify And Install, Can Choose From MPO And MTP. | Applications: | High Density Fiber Optic Cabling System, High Integrated Equipment And Devices, Precision Communication Device, QSFP Component, Data Center Wiring,40G/100G&10G/40G Connection Application. |
|---|---|---|---|
| Insertion Loss: | 0.3dB | Operating Temp.(℃): | -20 - +70 |
| Testing Wavelength(nm): | 1310/1550, 850/1300 | Color: | Black White Blue Pink Purple |
| Highlight: | MTO Optical Fiber Patch Cord,MPO Optical Fiber Patch Cord,module box fibre optic patch leads |
||
MTO/MPO Pre-terminal Sector Fiber matched with the module box for easy disk fiber

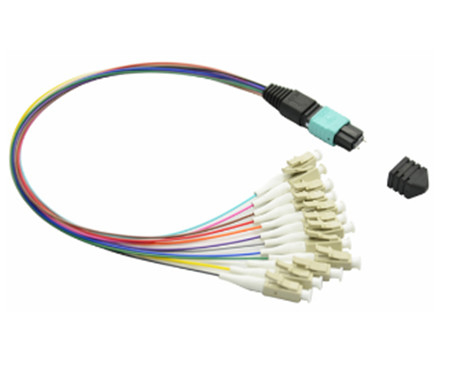

ETERN MPO-LC/SC pre-terminal sector fiber refers to adopting MPO single 12core/ 24 core connector on the one side and adopting LC/SC connector on the other side. This product is mainly used on pre-terminal module box, connects the patch cords between the backbone optical fiber or the pre-terminal and the equipment, and modularize it, achieving plug and play. Comparing to traditional welding, greatly improves the convenience and efficiency of the work.
Features
1. An MPO connector with a guide pin is connected to the main cable through the MPO port of the module box, and the LC or SC connector at the other end is connected to the patch cord of the equipment through the LC panel or SC panel of the module box.
2. The customized patch cord length can be matched with the module box for easy disk fiber. MPO panel can be easily upgraded
Performance Specification
MPO Connection
| Optical Fiber Type | Single Mode | Multi-mode | ||
| Insertion Loss | Typ.(dB) | 0.35 | 0.35 | |
| Max.(dB) | 0.75 | 0.75 | ||
| Low Insertion Loss | Typ.(dB) | 0.1 | 0.1 | |
| Max.(dB) | 0.35 | 0.35 | ||
| Return Loss | ≥60(APC) | ≥200(PC) | ||
| ≥50(PC) | ||||
| Male/Female Connector | Male Connector: With pin | Female connector:Without pin | ||
| Durability(dB) | ≤0.2 500times | |||
| Operation Temp.(℃) | -20 - +70 | |||
| Test Wavelength(nm) | 1310 | 850 | ||
Conventional Connectors like LC/SC/FC
| Optical Fiber Type | Single Mode | Multi Mode | |
| Connector Type | PC | APC | PC |
| Insertion Loss(dB) | ≤0.3 | ||
| Return Loss(dB) | ≥50 | ≥60 | ≥35 |
| Durability(dB) | ≤0.2 1000times connecting | ||
| Operating Temp.(℃) | -20 - +70 | ||
| Testing Wavelength(nm) | 1310 | 850 | |
