| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan Etern Optoelectronics |
| Certification: | RoHS |
| Model Number: | MTO/MPO Pre-terminal Sector Fiber |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Features: | Can Choose From MPO And MTP. | Applications: | Precision Communication Device, QSFP Component, Data Center Wiring,40G/100G&10G/40G Connection Application. |
|---|---|---|---|
| Operating Temp.(℃): | -20 - +70 | Testing Wavelength(nm): | 850nm |
| Color: | Black White Blue Pink Purple Green | Insertion Loss: | 0.75dB |
| High Light: | 850nm mtp mpo fiber patch cable,0.75dB mtp mpo fiber patch cable,LC connector mto cable |
||

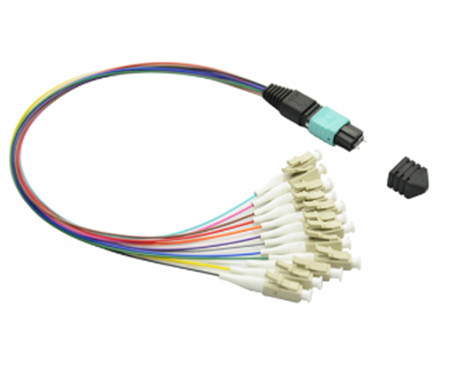

MTO/MPO Pre-terminal Sector Fiber
ETERN MPO-LC/SC pre-terminal sector fiber refers to adopting MPO single 12 core/ 24 core connector on the one side and adopting LC/SC connector on the other side. This product is mainly used on pre-terminal module box, connects the patch cords between the backbone optical fiber or the pre-terminal and the equipment, and modularize it, achieving plug and play. Comparing to traditional welding, greatly improves the convenience and efficiency of the work.
Features
1. An MPO connector with a guide pin is connected to the main cable through the MPO port of the module box, and the LC or SC connector at the other end is connected to the patch cord of the equipment through the LC panel or SC panel of the module box.
2. The customized patch cord length can be matched with the module box for easy disk fiber. MPO panel can be easily upgraded
Performance Specification
MPO Connection
| Optical Fiber Type | Single Mode | Multi-mode | ||
| Insertion Loss | Typ.(dB) | 0.35 | 0.35 | |
| Max.(dB) | 0.75 | 0.75 | ||
| Low Insertion Loss | Typ.(dB) | 0.1 | 0.1 | |
| Max.(dB) | 0.35 | 0.35 | ||
| Return Loss | ≥60(APC) | ≥200(PC) | ||
| ≥50(PC) | ||||
| Male/Female Connector | Male Connector: With pin | Female connector:Without pin | ||
| Durability(dB) | ≤0.2 500times | |||
| Operation Temp.(℃) | -20 - +70 | |||
| Test Wavelength(nm) | 1310 | 850 | ||
Conventional Connectors like LC/SC/FC
| Optical Fiber Type | Single Mode | Multi Mode | |
| Connector Type | PC | APC | PC |
| Insertion Loss(dB) | ≤0.3 | ||
| Return Loss(dB) | ≥50 | ≥60 | ≥35 |
| Durability(dB) | ≤0.2 1000times connecting | ||
| Operating Temp.(℃) | -20 - +70 | ||
| Testing Wavelength(nm) | 1310 | 850 | |
