| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan Etern Optoelectronics |
| Model Number: | MPO circle testing line |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Features: | LC Duplex Fixation, Easy For TX And RX Identify And Install, Can Choose From MPO And MTP. | Applications: | High Integrated Equipment And Devices, Precision Communication Device, QSFP Component, Data Center Wiring,40G/100G&10G/40G Connection Application. |
|---|---|---|---|
| Type: | 8, 16, 24, 32 Core | Color: | Black White Blue Pink Purple |
| Testing Wavelength(nm): | 1310/1550, 850/1300 | Insertion Loss: | 0.3dB |
| High Light: | multi mode Optical Fiber Patch Cord,20dB loss Optical Fiber Patch Cord,16 core mpo fiber patch cord |
||

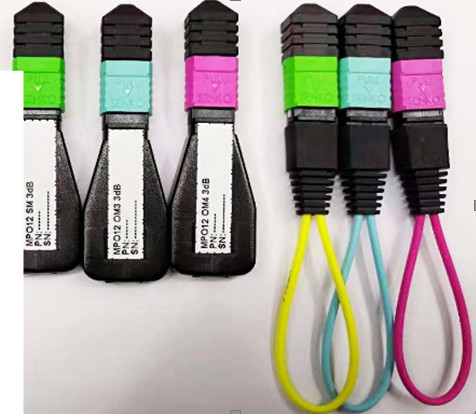

ETERN MPO circle testing line is used to test the transmitting power capacity and reception sensitivity of network equipments.
Features
1. 8, 16, 24, 32 avaliable
2.Typical insertion loss type and low insertion loss type avaliable
3. Single type APC and multi mode PC avaliable
4. Insertion loss value can be decided in advance
5. Customized fiber sequence avaliable
Performance Specification
| Technical Specification | |||
| Insertion Loss Accuracy | ±1dB(Range:1-10dB) | ±10% A (Range:11-20dB) | |
| Insertion Loss | 1-20dB | ||
| Return Loss(dB) | ≥60(APC) | ≥20(PC) | |
| Male/Female Connector | Male Connector:With pin | Female Connector: With | |
| Durability(dB) | ≤0.2 500times connection | ||
| Operating Temp.(℃) | -20 - +70 | ||
| Testing Wavelength(nm) | 1310 | 850 | |
Ordering Information
| Ordering Information | Example:YD-MPO-4-8-F-15-K | ||||
| Item | Enclosure Color | 1.SM8F | Pin Type | Insertion Loss | Channel |
| YD-MPO | 1.Green Single Mode OS2 | 2.MM8F | M. Male | 1 1dB | K:Customized |
| 2.Gray OM1 | 3.SM8F | F. Female | - - | ||
| 3.Black OM2 | 4.MM16F | 20 20dB | |||
| 4.Aqua blue OM3 | 5.SM24F | ||||
| 5.Purple OM4 | 6.MM24F | ||||
| 7.SM32F | |||||
| 8.MM32F | |||||
