| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan Etern Optoelectronics |
| Model Number: | MPO Pre-terminal Transfer Module |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Features: | Small Size, Easy Connection, LC Duplex Fixation, Easy For TX And RX Identify And Install, Can Choose From MPO And MTP. | Applications: | High Density Fiber Optic Cabling System, High Integrated Equipment And Devices, Precision Communication Device, QSFP Component, Data Center Wiring,40G/100G&10G/40G Connection Application. |
|---|---|---|---|
| Type: | 12 Core | Testing Wavelength(nm): | 1310/1550, 850/1300 |
| Color: | Black White Blue Pink Purple Green | Insertion Loss: | 0.1dB |
| High Light: | LC adapter Pre-terminal Transfer Module,0.1dB Pre-terminal Transfer Module,multi core mpo module |
||

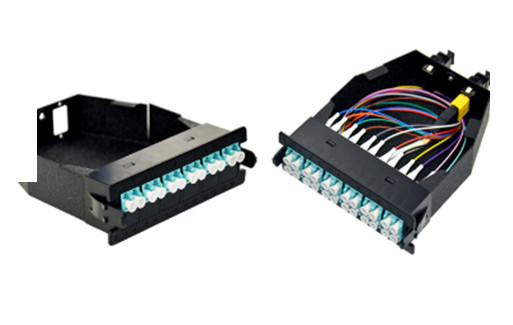

MPO Pre-terminal Transfer Module
ETERN MPO transfer module is mainly used to dividing the 12 core MPO connector on MPO backbone fiber cable terminal to single core or multi core conventional connector. Module output terminal is able to directly connecting to system device output terminal, distribution rack port and user side via single core or double core fiber patch cord.
The feature of this kind of switching module is the single/double core terminal locates on the forepart of module, so that the 12 core SC simplex connector and 12 core duplex connector are avaliable, one or two adapters can be installed on the back. The module is switching patch cord, connecting the front panel and back adapter directly.
Features
1. LC, MTRJ or SC adapter on front panel, MPO adapter on back panel
2. Adopt high-quality engineering plastic and aluminum alloy material, surface electrostatic spraying, good appearance and easy to use
3. MPO panel can be easily upgraded
4. All ports have lables on the front terminal, easy to recognize
Convenient installatio
Performance Specification
MPO Connection
| Optical Fiber Type | Single Mode | Multi-mode | ||
| Insertion Loss | Typ.(dB) | 0.35 | 0.35 | |
| Max.(dB) | 0.75 | 0.75 | ||
| Low Insertion Loss | Typ.(dB) | 0.1 | 0.1 | |
| Max.(dB) | 0.35 | 0.35 | ||
| Return Loss | ≥60(APC) | ≥200(PC) | ||
| ≥50(PC) | ||||
| Male/Female Connector | Male Connector: With pin | Female connector:Without pin | ||
| Durability(dB) | ≤0.2 500times | |||
| Operation Temp.(℃) | -20 - +70 | |||
| Test Wavelength(nm) | 1310 | 850 | ||
Conventional Connectors like LC/SC/FC
| Optical Fiber Type | Single Mode | Multi Mode | |
| Connector Type | PC | APC | PC |
| Insertion Loss(dB) | ≤0.3 | ||
| Return Loss(dB) | ≥50 | ≥60 | ≥35 |
| Durability(dB) | ≤0.2 1000times connecting | ||
| Operating Temp.(℃) | -20 - +70 | ||
| Testing Wavelength(nm) | 1310 | 850 | |
