| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan Etern Optoelectronics |
| Model Number: | MPO circle testing line |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Features: | Small Size, Easy Connection, LC Duplex Fixation, Easy For TX And RX Identify And Install, Can Choose From MPO And MTP. | Applications: | High Density Fiber Optic Cabling System, High Integrated Equipment And Devices, Precision Communication Device, QSFP Component, Data Center Wiring,40G/100G&10G/40G Connection Application. |
|---|---|---|---|
| Insertion Loss: | 0.3dB | Operating Temp.(℃): | -20 - +70 |
| Testing Wavelength(nm): | 1310/1550, 850/1300 | Color: | Black White Blue Pink Purple Green |
| High Light: | 32 core multimode fiber patch cord,MPO multimode fiber patch cord,1310nm patch cord 3 meter |
||

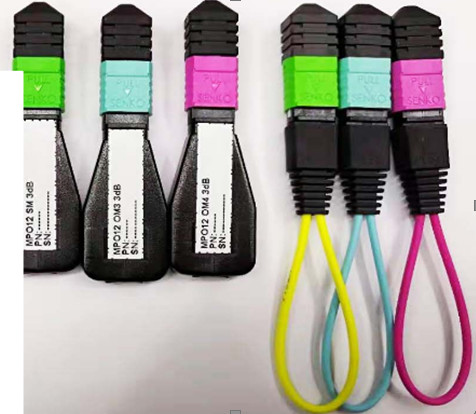

ETERN MPO circle testing line is used to test the transmitting power capacity and reception sensitivity of network equipments.
Features
1. 8, 16, 24, 32 avaliable
2.Typical insertion loss type and low insertion loss type avaliable
3. Single type APC and multi mode PC avaliable
4. Insertion loss value can be decided in advance
5. Customized fiber sequence avaliable
Performance Specification
| Technical Specification | |||
| Insertion Loss Accuracy | ±1dB(Range:1-10dB) | ±10% A (Range:11-20dB) | |
| Insertion Loss | 1-20dB | ||
| Return Loss(dB) | ≥60(APC) | ≥20(PC) | |
| Male/Female Connector | Male Connector:With pin | Female Connector: With | |
| Durability(dB) | ≤0.2 500times connection | ||
| Operating Temp.(℃) | -20 - +70 | ||
| Testing Wavelength(nm) | 1310 | 850 | |
Ordering Information
| Ordering Information | Example:YD-MPO-4-8-F-15-K | ||||
| Item | Enclosure Color | 1.SM8F | Pin Type | Insertion Loss | Channel |
| YD-MPO | 1.Green Single Mode OS2 | 2.MM8F | M. Male | 1 1dB | K:Customized |
| 2.Gray OM1 | 3.SM8F | F. Female | - - | ||
| 3.Black OM2 | 4.MM16F | 20 20dB | |||
| 4.Aqua blue OM3 | 5.SM24F | ||||
| 5.Purple OM4 | 6.MM24F | ||||
| 7.SM32F | |||||
| 8.MM32F | |||||
