| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan ETERN Optoelectronics |
| Certification: | SFF-8431,SFF-8432，RoHS |
| Model Number: | FLS25C241S-Dxx |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Packaging Details: | blister box |
| Payment Terms: | T/T |
| Supply Ability: | 100k per month |
| Product Name: | SFP28 | Connector: | LC |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network,High-density Video Routers,Telecom,Fiber Channel,DVI Extra Systerm | Certification: | CE RoHS FCC |
| Data Rate: | 25G | Power Supply: | 3.3V |
| Transmission Distance: | 10KM | DDM: | Yes |
| Operating Temperature: | 0~70℃ | ||
| High Light: | 1528nm 25g sfp transceiver,10KM 25g sfp transceiver,FTTH FTTB FTTX Network dwdm transceiver |
||
Features
1. Hot pluggable 20pin connector
2. Low power consumption<2 W
3. 0℃ to 70℃operating wide temperature range
4. Single +3.3V±5% power supply
5. Digital Monitoring SFF-8472 Rev10.2 compliant
6. Compliant to SFP28 MSA
7. Fully RoHS Compliant
8. All metal housing for superior EMI performance
9. Operating data rate up to 25.78Gbps
10. High sensitivity Pin photodiode and TIA
11. LC duplex connector
Specification:
| Description: | 25Gbps-10KM-DWDM-SM-SFP28 |
| Part NO: | FLS25C241S-Dxx |
| Package: | SFP28 |
| Date Rate (bit/s): | 25G |
| Wavelength: | 1528nm-1563nm |
| Reach: | 10KM |
| TOP°C: | 0℃ ~ 70℃ |
Description:

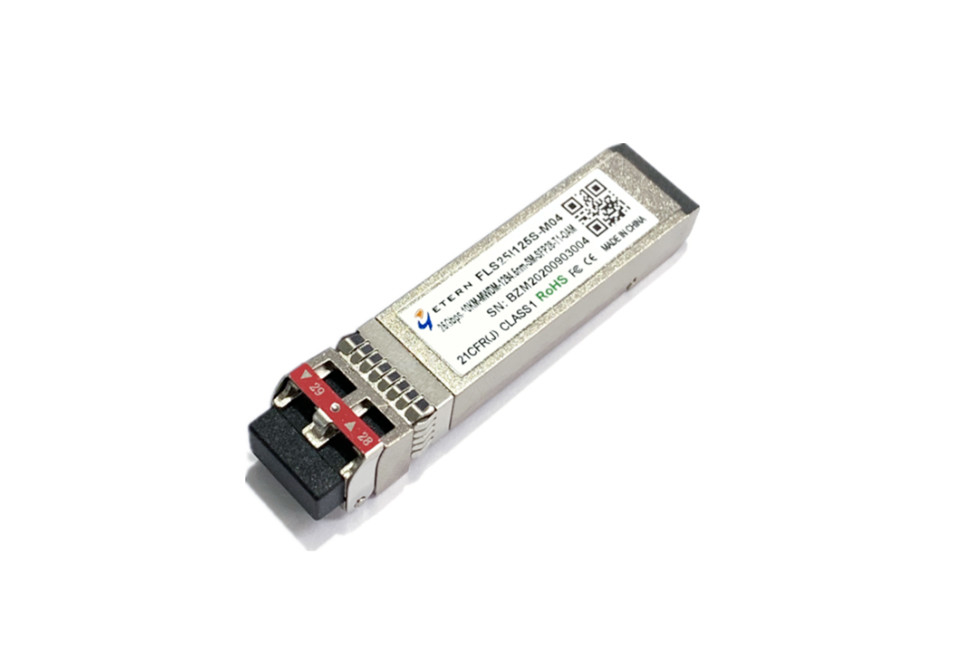

The laser based 25Gigabit SFP28 Transceiver is designed to transmit and receive serial optical data over single mode optical fiber with 10KM. They are compliant with SFF-8431,SFF-8432. The transmitter converts serial CML electrical data into serial optical data. The receiver converts serial optical data into serial CML electrical data.Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
Ordering Information:
| Description | Part NO. | Package | Date Rate (bit/s) | Wavelength | Reach | TOP (C) | |
| 25G | 25Gbps-10KM-DWDM-SM-SFP28 | FLS25C241S-Dxx | SFP28 | 25G | 1528nm-1563nm | 10KM | 0℃ ~ 70℃ |
