| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan ETERN Optoelectronics |
| Certification: | RoHS |
| Model Number: | FLS100C101S |
| Minimum Order Quantity: | 2PCS |
| Price: | Negotiable |
| Packaging Details: | blister box |
| Payment Terms: | T/T |
| Supply Ability: | 100k per month |
| Product Name: | QSFP28 | Wavelength: | 850nm |
|---|---|---|---|
| Connector: | MTP/MPO | Warranty: | 1year |
| Operating Temperature: | 0℃~+70℃ | ||
| High Light: | MTP Connector optical transceiver module,RoHS optical transceiver module,100gbase sr4 qsfp transceiver |
||

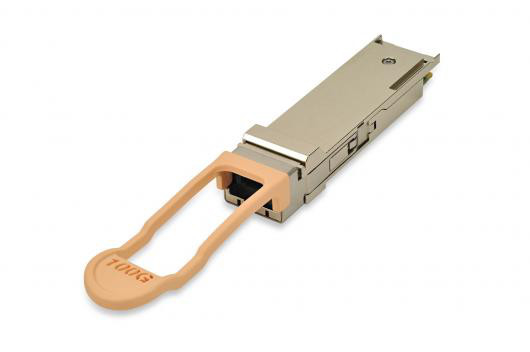

100Gbps-100M-850nm-MM-QSFP28 optical transceiver
Applications:
1. 100GBASE-SR4 100G Ethernet
Description:
The 100G QSFP28 SR4 (FLS100C101S) is designed for use in 100-Gigabit Ethernet links up to 100m over Multi-Mode Fiber (MMF). It is compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4 and CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA. It integrates 4 data lanes in each direction with 4×25.78125Gb/s bandwidth. The electrical interface uses a 38-contact edge type connector. The optical interface uses a 12-fiber MTP/MPO connector. This module incorporates proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
Features:
1. Hot-pluggable QSFP28 form factor
2. 4 channels full-duplex transceiver module
3. Supports 103.125Gb/s aggregate bit rate
4. 4 channels 850nm VCSEL array
5. 4 channels PIN photo-detector array
6. Internal CDR circuits on both receiver and transmitter channels
7. Supports CDR bypass
8. 2W maximum power dissipation
9. Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
10. Single MTP/MPO receptacle
11. Operating case temperature range: 0 to 70°C
12. Single 3.3V power supply
13. RoHS compliant (lead free)
Optical Characteristics:
| Parameter | Symbol | Min | Typical | Max | Unit |
| Transmitter | |||||
| Center Wavelength | λc | 840 | 850 | 860 | nm |
| RMS Spectral Width | ∆λ | 0.6 | nm | ||
| Average Launch Power (each lane) | Pout | -8.4 | 2.4 | dBm | |
| Optical Modulation Amplitude (each lane) | OMA | -6.4 | 3 | dBm | |
| Transmitter and Dispersion Eye Closure (each lane) | TDEC | 4.3 | dB | ||
| Extinction Ratio | ER | 3 | dB | ||
| Average Launch Power of OFF Transmitter (each lane) | Poff | -30 | dB | ||
| Eye Mask Coordinates1: X1, X2, X3, Y1, Y2, Y3 | {0.3, 0.38, 0.45, 0.35, 0.41, 0.5} | ||||
| Receiver | |||||
| Center Wavelength | λc | 840 | 850 | 860 | nm |
| Stressed Receiver Sensitivity in OMA2 | -5.2 | dBm | |||
| Average Power at Receiver Input (each lane) | -10.3 | 2.4 | dBm | ||
| Receiver Reflectance | RR | -12 | dB | ||
| LOS Assert | LOSA | -30 | dBm | ||
| LOS De-Assert – OMA | LOSD | -7.5 | dBm | ||
| LOS Hysteresis | LOSH | 0.5 | dB | ||
Ordering Information:
| Description | Part NO. | Model | Package | Date Rate (bit/s) | Wavelength | Reach | TOP (C) | ||
| 100G | 100Gbps-100M-850nm-MM-QSFP28 | FLS100C101S | 100G-SR/100M | QSFP28-MPO | 103.1G | 850nm | 100M | 0~70 | |
