| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan ETERN Optoelectronics |
| Certification: | RoHS |
| Model Number: | FLS100C900S |
| Minimum Order Quantity: | 2PCS |
| Price: | Negotiable |
| Packaging Details: | blister box |
| Payment Terms: | T/T |
| Supply Ability: | 100k per month |
| Feature: | Hot Pluggable | Product Name: | OTN OTU4 Optical Transceiver |
|---|---|---|---|
| Warranty: | 1 Year | Application: | Support Telecom |
| Transmission Distance: | 10KM | DDM: | Yes |
| Operating Temperature: | 0~70 | Wavelength: | 1310 Nm PIN ROSA |
| High Light: | OTN OTU4 Optical Transceiver,RX power Optical Transceiver,LWDM CFP2 module |
||
Features:
1. 1310 nm PIN ROSA
2. Operating optical data rate up to 112Gbps
3. CFP2 MSA compliant
4. Compliant to IEEE 802.3ba specification for 100GBASE-LR4
5. Compliant to OTU4
6. Transmission distance up to 10km
7. Operating electrical serial data rate up to 27.952493Gbps
8. RX output CDR retiming
9. Hot pluggable
10. Total Power Consumption<6W
11. Operating case temperature 0°C to +70°C
12. 3.3V power supply
13. Duplex LC receptacle optical interface
14. Compliant with CFP2 MSA hardware specification
15. Compliant with CFP MSA management specification
16. RoHS compliant
Applications:
1. 100GbE IEEE 802.3ba
2. OTN-OTU4
Description:

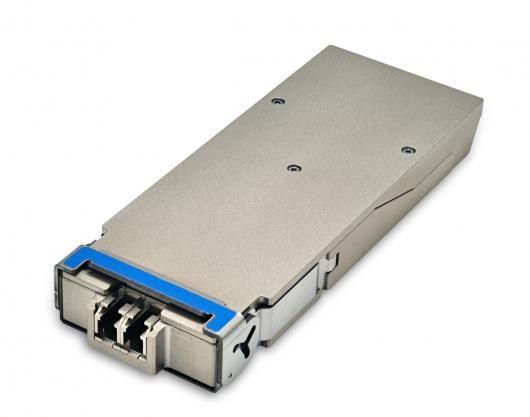

The 100Gbps-10KM-LWDM-SM-CFP2-RX optical transceiver is a hot pluggable 100Gbps small-form-factor transceiver module .It is compliant with IEEE802.3ba and CFP2 MSA. The module is a multi-rate optical transceiver and intended to support Telecom and Datacom applications.
Optical Characteristics:
| Optical Receiver Characteristics | |||||
| Receiver Sensitivity in OMA for Each Lane(100GbE) |
Sen |
dBm |
- | - | -8.6(1) |
| Receiver Sensitivity for Each Lane(OTU4) | -10.3(2) | ||||
| Los Assert | dBm | -15 | |||
| Los De-assert | dBm | -19 | |||
| Los Hysteresis | dB | 1 | 2 | ||
Ordering Information:
| Description | Part NO. | Model | Package | Date Rate (bit/s) | Wavelength | Reach | TOP (C) | ||
| 100G | 100Gbps-2KM-LWDM-SM-CFP | FLS100C502S | 100G-SLR/2KM | CFP-LC | 112G | 1310nm/LWDM4 | 2KM | 0~70 | |
| 100Gbps-10KM-LWDM-SM-CFP | FLS100C510S | 100G-LR/10KM | CFP-LC | 112G | 1310nm/LWDM4 | 10KM | 0~70 | ||
| 100Gbps-2KM-LWDM-SM-CFP2 | FLS100C602S | 100G-SLR/2KM | CFP2-LC | 112G | 1310nm/LWDM4 | 2KM | 0~70 | ||
| 100Gbps-10KM-LWDM-SM-CFP2 | FLS100C610S | 100G-LR/10KM | CFP2-LC | 112G | 1310nm/LWDM4 | 10KM | 0~70 | ||
| 100Gbps-10KM-LWDM-SM-CFP2-RX | FLS100C900S | 100G-RX | CFP2-LC | 112G | 1310nm/LWDM4 | 10KM | 0~70 | ||
