| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan Etern Optoelectronics |
| Certification: | RoHS |
| Model Number: | MTP/MPO Pre-Terminal Branch Cable |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100k per month |
| Features: | High Return Loss, High Interactivity, Good Tensile Resistance | Applications: | 40G/100G&10G/40G Connection Application |
|---|---|---|---|
| Type: | MPO-LC/SC/FC Mixed Type | Color: | Pink |
| Testing Wavelength(nm): | 1310/1550, 850/1300 | Insertion Loss: | 0.75dB |
| High Light: | 0.75dB Optical Fiber Patch Cord,purple Optical Fiber Patch Cord,MPO pre terminated multimode fiber |
||

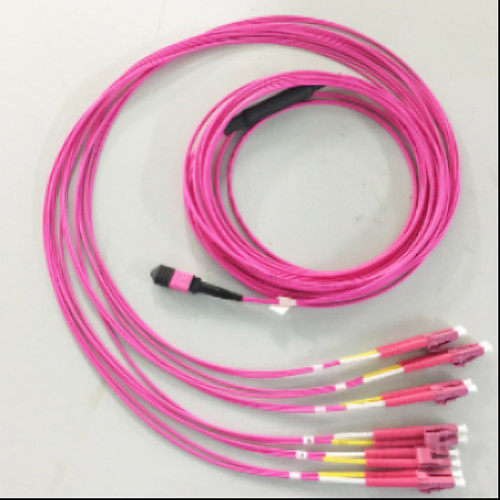

ETERN MPO-LC/SC/FC mixed type connector pre-terminal fiber cable
0.75dB Optical Fiber Patch Cord MPO Pre Terminated Multimode Fiber
Performance Specification
| Optical Fiber Type | Single Mode | Multi-mode | ||
| Insertion Loss | Typ.(dB) | 0.35 | 0.35 | |
| Max.(dB) | 0.75 | 0.75 | ||
| Low Insertion Loss | Typ.(dB) | 0.1 | 0.1 | |
| Max.(dB) | 0.35 | 0.35 | ||
| Return Loss | ≥60(APC) | ≥200(PC) | ||
| ≥50(PC) | ||||
| Male/Female Connector | Male Connector: With pin | Female connector:Without pin | ||
| Durability(dB) | ≤0.2 500times | |||
| Operation Temp.(℃) | -20 - +70 | |||
| 1310 | 850 | |||
Conventional Connectors like LC/SC/FC
| Optical Fiber Type | Single Mode | Multi Mode | |
| Connector Type | PC | APC | PC |
| Insertion Loss(dB) | ≤0.3 | ||
| Return Loss(dB) | ≥50 | ≥60 | ≥35 |
| Durability(dB) | ≤0.2 1000times connecting | ||
| Operating Temp.(℃) | -20 - +70 | ||
| Testing Wavelength(nm) | 1310 | 850 | |
ETERN MPO-LC/SC/FC mixed type connector pre-terminal fiber cable refers to adopting MPO single 12/24 core connector on the one port and LC/SC/FC connector on the other port, this product is mainly appliey to the needs of connecting directly from main wiring area to system equipment port or equipment distribution frame. This structure can also be used on system extension of the extension cable.
Features
1. Provide 12 to 144 core optical diber connection
2. 12 or 24 core MPO connector, decrease the possibility of breakdown and reduce wiring space
3. According to customers’different needs, choosing from multi mode OM3, OM4 and single mode G62D, G652A.
4. Adopting rouded and small diameter new optical fiber, achieved smaller bending radius of backbone fiber, make storing and laying more convenient
