| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan ETERN Optoelectronics |
| Certification: | SFF-8431,SFF-8432，RoHS |
| Model Number: | FLS10C110S |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Packaging Details: | blister box |
| Payment Terms: | T/T |
| Supply Ability: | 100k per month |
| Product Name: | SFP+ | Connector: | LC |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network,High-density Video Routers,Telecom,Fiber Channel,DVI Extra Systerm | Certification: | CE RoHS FCC |
| Data Rate: | 10G | Power Supply: | 3.3V |
| Transmission Distance: | 10KM | DDM: | Yes |
| Operating Temperature: | 0~70℃ | ||
| High Light: | FTTH FTTB Sfp Transceiver Module,Sfp Transceiver Module 10Gbps 10KM,10KM 1310nm Sfp Transceiver Module |
||

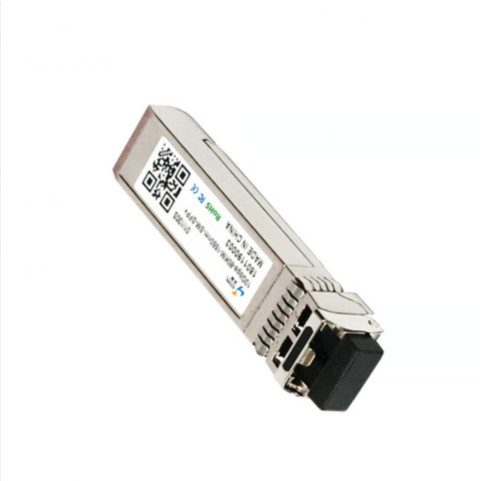

The laser based 10Gigabit SFP+ Transceiver is designed to transmit and receive serial optical data over single mode optical fiber with 10KM. They are compliant with SFF-8431,SFF-8432, 10GFC Rev 4.0,. The transmitter converts serial DML electrical data into serial optical data compliant with the IEEE 802.3ae standard. The receiver converts serial optical data into serial DML electrical data.Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472
Specification:
| Description: | 10Gbps-10KM-1310nm-SM-SFP+ optical transceiver |
| Part NO: | FLS10C110S |
| Package: | SFP+ |
| Date Rate (bit/s): | 10G |
| Wavelength: | 1310nm |
| Reach: | 10KM |
| TOP°C: | 0℃ ~ 70℃ |
Features
Compliant to SFP+ MSA
Fully RoHS Compliant
All metal housing for superior EMI performance
Operating data rate up to 10.52Gbps
850nm VCSEL Laser
High sensitivity Pin photodiode and TIA
LC duplex connector
Hot pluggable 20pin connector
Low power consumption<1.0 W
0℃ to 75℃ operating wide temperature range
Single +3.3V±5% power supply
Digital Monitoring SFF-8472 Rev 10.2 compliant
