| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan Etern Optoelectronics |
| Certification: | RoHS |
| Model Number: | MM-ST/MM-2F-LC/MM-FC/MM-SC/SM-ST/SM-2F-LC/SM-FC/SM-SC |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100k per month |
| Features: | High Repeatability, High Return Loss | Applications: | High Integrated Equipment And Devices, Precision Communication Device |
|---|---|---|---|
| Type: | SM-ST/SM-2F-LC/SM-FC/SM-SC | Insertion Loss: | 0.3dB |
| Testing Wavelength(nm): | 1300nm | Color: | Black White Blue Pink Purple |
| High Light: | 1300nm fiber optic cable patch cord,5mm fiber optic cable patch cord,Tensile Resistance ftth sc connector |
||

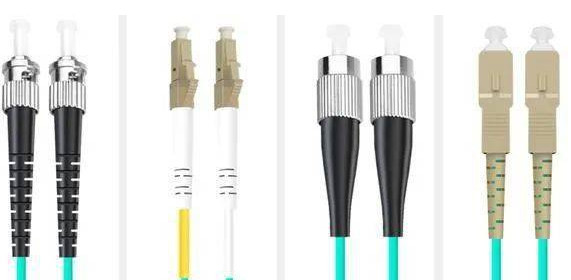

5mm Fiber Optic Cable Patch Cord Tensile Resistance FTTH SC Connector
Etern optical fiber patch cords are used for the connections between equipments and optical fiber cabling. With thick protective layer, the general application could be connecting optical transmitter, receiver and terminal equipments, optical communication system, fiber access network, data transmission and local area network.
Optical fiber patch cords are the important part of passive components which are able to connect various equipments and system activities. Using patch cords and fiber distribution frame, interchanger and terminal box cooperatively will manage and mantain the entire fiber optic communication network more flexible and efficient.
Features
1. Low Insertion Loss, High repeatability
2. High Return Loss, High Interactivity
3. High Stability Towards Temperature Changes
4. Good Tensile Resistance
Applications
1. Telecommunication room, FTTH, LAN, fiber optic sensor, optical fiber communication system, connection and transmission equipments, national defense
2. Cable TV Network, telecommunication network, computer fiber optic network, and optical testing equipment
3. High intergration devices, precision communication equipment, QSFP, data center wiring, 40G/100G/&10G/40G connection
Performance Specification
Conventional connectors(Like LC/SC/FC):(Physical dimension)
| Parameters | Φ1.25pin | Φ2.5pin |
| Fiber concave or fiber projection(X) | -100~+50nm | -100~+50nm |
| PC/UPC type radius of end curvature(R) | 7mm≤R≤25mm | 10mm≤R≤25mm |
| APC type radius of end curvature(R) | 5mm≤R≤12mm | 5mm≤R≤15mm |
| Vertex offset | 0~50μm | 0~50μm |
| APC angle(°) | 8±0.3 | 8±0.3 |
| Type of Optical Fiber | Single Mode | Multimode | |
| Type of Connector | PC | APC | PC |
| Insertion Loss(dB) | ≤0.3 | ||
| Return Loss(dB) | ≥50 | ≥55 | ≥40 |
| Durability(dB) | ≤0.2 500 times connecting | ||
| Operating Temp.(℃) | -20 - +70 | ||
| Testing Wavelength(nm) | 1310/1550 | 850/1300 | |
