| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan Etern Optoelectronics |
| Certification: | RoHS |
| Model Number: | MTP/MPO Pre-Terminal Branch Cable |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100k per month |
| Features: | Small Size, Easy Connection | Applications: | High Density Fiber Optic Cabling System |
|---|---|---|---|
| Type: | MM-ST/MM-2F-LC/MM-FC/MM-SC/SM-ST/SM-2F-LC/SM-FC/SM-SC | Insertion Loss: | 0.1dB |
| Operating Temp.(℃): | -20 - +70 | Testing Wavelength(nm): | White Blue Pink |
| High Light: | 0.35dB pre terminated fiber optic cable,pink pre terminated fiber optic cable,144 core mpo fiber cable |
||
ETERN MPO-FC mixed type connector pre-terminal fiber cable,Provide 12 to 144 core optical diber connection

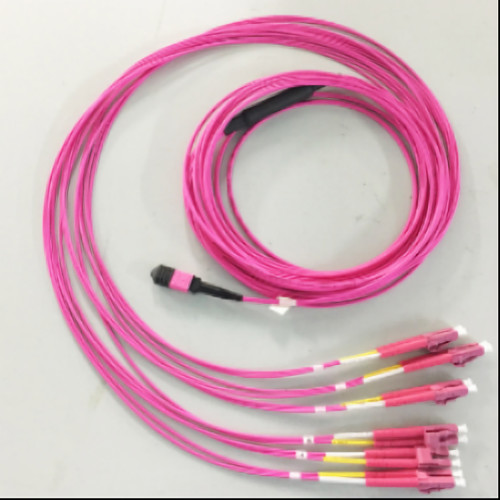

Pink Pre Terminated Fiber Optic Cable 144 Core MPO-FC Mixed Type Connector
ETERN MPO-LC/SC/FC mixed type connector pre-terminal fiber cable refers to adopting MPO single 12/24 core connector on the one port and LC/SC/FC connector on the other port, this product is mainly appliey to the needs of connecting directly from main wiring area to system equipment port or equipment distribution frame. This structure can also be used on system extension of the extension cable.
Performance Specification
| Optical Fiber Type | Single Mode | Multi-mode | ||
| Insertion Loss | Typ.(dB) | 0.35 | 0.35 | |
| Max.(dB) | 0.75 | 0.75 | ||
| Low Insertion Loss | Typ.(dB) | 0.1 | 0.1 | |
| Max.(dB) | 0.35 | 0.35 | ||
| Return Loss | ≥60(APC) | ≥200(PC) | ||
| ≥50(PC) | ||||
| Male/Female Connector | Male Connector: With pin | Female connector:Without pin | ||
| Durability(dB) | ≤0.2 500times | |||
| Operation Temp.(℃) | -20 - +70 | |||
| 1310 | 850 | |||
Features
1. Provide 12 to 144 core optical diber connection
2. 12 or 24 core MPO connector, decrease the possibility of breakdown and reduce wiring space
3. According to customers’different needs, choosing from multi mode OM3, OM4 and single mode G62D, G652A.
4. Adopting rouded and small diameter new optical fiber, achieved smaller bending radius of backbone fiber, make storing and laying more convenient
Conventional Connectors like LC/SC/FC
| Optical Fiber Type | Single Mode | Multi Mode | |
| Connector Type | PC | APC | PC |
| Insertion Loss(dB) | ≤0.3 | ||
| Return Loss(dB) | ≥50 | ≥60 | ≥35 |
| Durability(dB) | ≤0.2 1000times connecting | ||
| Operating Temp.(℃) | -20 - +70 | ||
| Testing Wavelength(nm) | 1310 | 850 | |
